Introduction to TPS61088RHLR and its Role in Portable Charging Devices

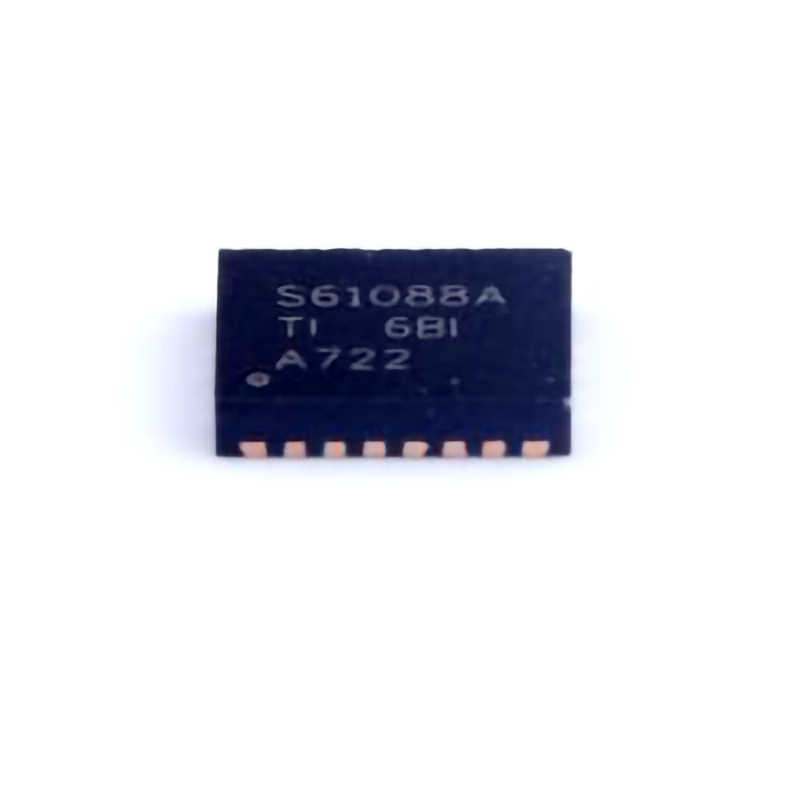

In the world of portable Power systems, efficiency and reliability are paramount. With the increasing demand for portable charging devices in today’s fast-paced, mobile-centric world, ensuring that these devices are both efficient and capable of providing reliable power is a critical factor in consumer satisfaction and performance. One of the standout components that can significantly elevate the performance of portable charging devices is the TPS61088RHLR, a high-performance boost converter developed by Texas Instruments (TI).

The TPS61088RHLR is designed to meet the growing needs of compact, energy-efficient, and reliable portable power applications. Its core function is to take a low input voltage and efficiently boost it to a higher, stable output voltage, which is essential for powering devices like smartphones, wearables, and other USB-powered gadgets. By employing cutting-edge technology, the TPS61088RHLR offers several advantages that can make it a game-changer for manufacturers and end-users alike.

Key Features and Capabilities of TPS61088RHLR

The TPS61088RHLR comes equipped with several advanced features, including:

Wide Input Voltage Range: It operates over a broad range of input voltages (from 0.8V to 5.5V), making it highly flexible and suitable for a variety of power sources. This wide range of input voltages ensures compatibility with different battery chemistries, including lithium-ion (Li-ion) and lithium-polymer (Li-Po) batteries, which are commonly used in portable devices.

High Efficiency: Efficiency is a critical aspect of any power conversion device, especially in portable applications. The TPS61088RHLR provides an impressive efficiency of up to 96%, reducing power loss and extending the runtime of devices. This is particularly beneficial for portable charging devices, where maximizing battery life is essential for users on the go.

Low Quiescent Current: With a low quiescent current (less than 35μA), the TPS61088RHLR minimizes power consumption when idle, helping to preserve battery life in applications where the device may remain in standby mode for extended periods.

Small Form Factor: Its compact package (5mm x 5mm QFN-20) allows designers to incorporate it into space-constrained devices without compromising on performance. The small size also helps reduce the overall cost and weight of the portable charging device.

Adjustable Output Voltage: The TPS61088RHLR provides an adjustable output voltage, which allows designers to tailor the boost converter to the specific voltage requirements of the device being powered. This versatility is critical for portable chargers that support a wide range of gadgets, each with varying voltage demands.

The Role of TPS61088RHLR in Portable Charging Applications

Portable charging devices, especially power banks and chargers, are designed to provide power on demand. However, the effectiveness of these devices is determined not only by the capacity of their batteries but also by the quality of their power conversion systems. The TPS61088RHLR helps address this issue by enabling efficient voltage conversion, ensuring that power is delivered consistently and with minimal loss.

For example, in power banks, the input voltage from the internal battery (often lower than 3.7V) needs to be boosted to a standard USB output voltage of 5V to charge smartphones, tablets, and other devices. The TPS61088RHLR performs this function with high efficiency, which translates into longer battery life, faster charging times, and reduced heat generation.

Moreover, its flexibility in handling various input voltages and output configurations makes it ideal for a wide range of portable charging devices. Whether you're building a compact USB power bank, a wearable charger, or an external battery pack for laptops, the TPS61088RHLR provides the power conversion performance needed to ensure stable, efficient operation.

Efficiency Improvement and Real-World Applications of TPS61088RHLR

How TPS61088RHLR Improves Efficiency in Portable Devices

The TPS61088RHLR is not just another boost converter; it’s a tool that optimizes the efficiency of portable charging devices in numerous ways. As mobile devices continue to increase in both power demands and complexity, efficient energy conversion has never been more important. Below, we explore how the TPS61088RHLR helps improve the overall efficiency of portable charging devices.

Minimized Power Loss: One of the most significant benefits of the TPS61088RHLR is its ability to operate with high efficiency (up to 96%) over a wide range of loads. Traditional boost converters often suffer from significant power loss due to inefficiencies in the conversion process, especially when dealing with low input voltages. The TPS61088RHLR minimizes these losses by maintaining high efficiency, even under low or variable input conditions. This is crucial for portable charging devices, where energy conservation is vital to ensure maximum usage time.

Reduced Heat Generation: High-efficiency power conversion translates to less heat being generated during operation. This is particularly important in portable charging devices, which are typically compact and have limited space for heat dissipation. By minimizing heat production, the TPS61088RHLR helps prevent overheating, which can damage the internal components of the device and reduce its lifespan.

Improved Battery Life: By enhancing the overall efficiency of the power conversion process, the TPS61088RHLR contributes directly to improving the battery life of portable charging devices. When less power is wasted as heat, more of the energy stored in the battery is utilized to charge external devices. This results in a longer operational time before the charger itself needs to be recharged.

Power Savings in Standby Mode: In many portable chargers, the device must remain in a low-power standby mode when not in active use, especially in battery-powered applications. The TPS61088RHLR features a low quiescent current, meaning it draws minimal power in standby mode, further conserving energy when the device is not actively charging other devices. This energy-efficient operation ensures that the charger’s battery lasts longer, even when it’s not in use.

Real-World Applications of the TPS61088RHLR in Portable Charging Devices

Portable charging devices come in many forms, from power banks to solar chargers and wireless charging stations. The versatility of the TPS61088RHLR enables it to be used in a wide variety of applications, each requiring different performance specifications and configurations.

Power Banks: Power banks are perhaps the most common portable charging device that benefits from the TPS61088RHLR. These devices often rely on lithium-ion or lithium-polymer batteries to store energy, and the TPS61088RHLR is ideal for converting the low voltage from these batteries into a stable 5V output for charging smartphones and other gadgets. The high efficiency of the TPS61088RHLR ensures that more energy from the battery is used for charging, thus extending the operational time of the power bank.

Solar Charging Systems: Solar-powered chargers are an eco-friendly solution for portable power. The TPS61088RHLR is especially useful in solar charging systems, as it can efficiently convert the often-variable output from solar panels (which can be as low as 1V under low light conditions) into a stable output voltage. This makes it ideal for off-grid, sustainable energy applications.

Wearable Devices: Wearable electronics, such as fitness trackers and smartwatches, often rely on small, integrated power sources. The TPS61088RHLR provides an efficient way to boost the small battery voltage to a level that’s usable for charging or powering these devices. Its small size and low quiescent current make it a perfect match for wearable applications, where conserving space and energy is essential.

USB-C Charging Devices: The TPS61088RHLR can be integrated into USB-C-based charging solutions, offering a versatile, high-power charging solution that’s compatible with a range of devices from laptops to gaming consoles. Its ability to handle both high output currents and maintain efficiency across various voltage levels makes it an ideal component for these modern charging solutions.

Conclusion

In the rapidly evolving world of portable charging, efficiency is the key to delivering the best user experience. The TPS61088RHLR from Texas Instruments offers an effective, high-performance solution for improving the efficiency of portable charging devices. With its wide input voltage range, high efficiency, and low standby power consumption, the TPS61088RHLR is an essential component for designers and manufacturers looking to enhance the performance of their portable charging products. Whether in power banks, solar chargers, wearable devices, or USB-C-based applications, this boost converter ensures that devices stay powered for longer, with less waste and more effective energy use.
