Understanding CH340G and Identifying Common Problems

The CH340G USB-to-serial chip is a popular and affordable solution for converting USB signals to serial Communication protocols, making it commonly used in various embedded systems, including Arduino boards, Raspberry Pi, and other microcontroller projects. Despite its widespread use, the CH340G can sometimes present users with connection issues, driver problems, or faulty communication. Understanding the common troubleshooting steps and knowing how to address them can save you time and frustration.

1.1 The CH340G: An Overview

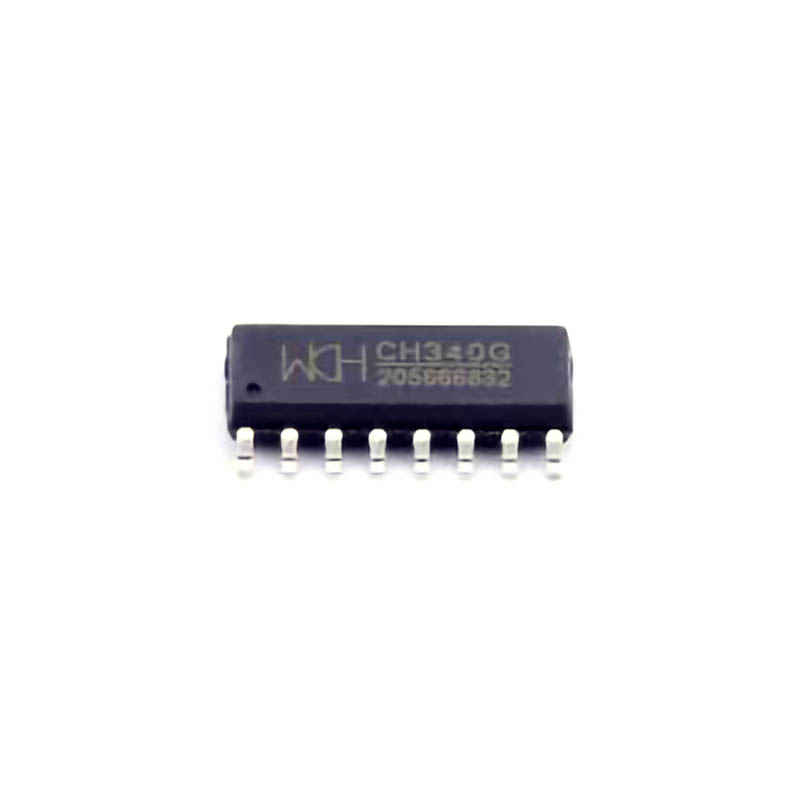

The CH340G is a USB-to-serial bridge chip produced by the Chinese company WCH. It facilitates communication between microcontrollers and computers by converting USB signals to serial communication (UART) protocols. This chip is commonly used in Arduino-based development boards like the Uno and Nano, as well as in various other microcontroller platforms.

However, users occasionally face issues with the CH340G, especially during installation or when the chip is not recognized by the host system. Below are some of the most common problems faced with the CH340G, followed by the corresponding troubleshooting techniques.

1.2 Common Problems with CH340G

1.2.1 Driver Issues

One of the most frequent problems that users encounter when working with the CH340G is driver-related issues. Without the proper Drivers , the host system (Windows, Linux, or macOS) will not recognize the device, leading to errors or a non-functional connection. This can manifest as a "Device Not Recognized" error or the appearance of a yellow exclamation mark in Device Manager (for Windows users).

1.2.2 Inconsistent Communication or No Data Transfer

Another issue commonly reported is inconsistent or failed communication between the host system and the microcontroller. The CH340G may show up as a connected device, but there might be no data transfer or the data might be garbled. This could be due to incorrect baud rate settings, faulty wiring, or even issues with the software (like Arduino IDE settings).

1.2.3 USB Port Issues

Sometimes, the issue may not lie with the CH340G chip itself, but with the USB port you are using. USB hubs, for instance, can sometimes cause connectivity issues, especially when Power ing the device through a hub rather than directly from the computer’s USB port. This can also affect power stability and communication reliability.

1.2.4 Hardware Faults

In rare cases, a hardware fault may be the root cause. If the CH340G chip is damaged, whether due to manufacturing defects or physical damage, it will fail to work properly, and troubleshooting software solutions will be ineffective.

1.3 Troubleshooting Solutions for CH340G Issues

1.3.1 Updating or Reinstalling Drivers

The first step in solving most CH340G-related problems is ensuring that you have the correct and up-to-date drivers installed on your system. For Windows users, the drivers can often be found on the WCH official website or through third-party repositories. Here’s a simple way to update or reinstall the drivers:

Go to Device Manager and find the CH340G under the “Ports (COM & LPT)” section.

Right-click and select Update Driver.

Choose Search automatically for updated driver software.

If no updates are found, manually download the driver from the official website and install it.

1.3.2 Ensuring Correct Baud Rate and Communication Settings

Sometimes, the issue could be with incorrect settings in your software (like the Arduino IDE or terminal program). Ensure that the baud rate and other communication parameters (data bits, parity, stop bits) are configured correctly. For most Arduino projects, the default baud rate is typically 9600 or 115200 bps, but make sure these match the settings on the microcontroller you are using.

To configure the settings in the Arduino IDE, you can go to Tools > Port and select the correct COM port. Under Tools > Board, select the appropriate Arduino board. If the issue persists, try using a different baud rate to see if it resolves the problem.

1.3.3 Testing Different USB Ports or Cables

To rule out issues with USB ports or cables, try plugging the device into a different USB port or using a different USB cable. Ensure that the cable is in good condition, as faulty or low-quality cables can cause intermittent communication failures.

1.3.4 Testing with Another Computer

If the problem persists despite trying different drivers, USB ports, and cables, it’s worth testing the CH340G with another computer. This will help determine whether the issue is with the computer or the hardware itself. If the device works on a different machine, the issue may be specific to the original system’s settings or configurations.

Advanced Solutions and Hardware Checks for CH340G Troubleshooting

2.1 Dealing with Hardware Faults

While software issues are usually the most common cause of problems with the CH340G chip, hardware faults can also arise. These faults might be due to damage caused by improper handling, static discharge, or manufacturing defects. In these cases, it is crucial to examine the chip closely for visible signs of damage, such as:

Burn marks or discoloration: Indicating potential overheating.

Cracked or bent pins: Which could cause connection problems.

Loose connections: Particularly if the CH340G is mounted on a breadboard or PCB.

If you suspect hardware damage, the first solution is to replace the CH340G chip. It’s generally an inexpensive part, and swapping it out should restore the functionality of your device. Alternatively, you may choose to use an external USB-to-serial adapter if the onboard CH340G is irreparably damaged.

2.2 Using Alternative USB-to-Serial Chips

If replacing the CH340G chip is not an option, or if you’re simply looking for a more reliable alternative, you might consider using a different USB-to-serial chip. Some popular options include the FT232R and CP2102 chips, both of which have wide support across various platforms. However, keep in mind that using a different chip will require you to update or modify the drivers and settings in your software to accommodate the new chip.

2.3 Advanced Driver Issues: Conflicting Drivers

In certain rare cases, multiple drivers installed on your system may conflict with one another, causing the CH340G to malfunction. This can happen if you've previously installed drivers for other USB-to-serial adapters or devices that use similar communication protocols.

To fix this issue:

Open Device Manager and check for any duplicate entries under the “Ports (COM & LPT)” section.

Uninstall any conflicting drivers (right-click and select Uninstall Device).

Reinstall only the necessary CH340G driver.

Alternatively, you may use Driver Fusion or a similar third-party tool to clear all old or conflicting driver installations.

2.4 Using External Power Supplies

Power instability can sometimes affect the performance of the CH340G, particularly in situations where the device is drawing more current than the USB port can supply. If you’re using a USB hub, ensure it is a powered hub, or connect the device directly to a USB port on the computer.

In projects where the microcontroller and connected devices are powered by USB, consider using an external power supply or battery to ensure stable voltage and current.

2.5 Diagnosing Data Corruption and Noise

In some situations, the CH340G might appear to be functioning correctly, but data transfer may still be unreliable. This can occur due to electromagnetic interference ( EMI ) or faulty wiring. To solve this:

Use shielded cables to reduce EMI.

Make sure the wiring is clean and well-organized, avoiding long and unshielded wires.

Consider adding decoupling capacitor s to your circuits to filter out noise.

Conclusion

The CH340G is an excellent and affordable solution for USB-to-serial communication, but like any piece of hardware, it can run into problems. By following the troubleshooting steps outlined in this article, you can easily resolve most issues related to driver installation, communication errors, and hardware faults. Remember, when in doubt, double-check all connections, settings, and drivers, and test on a different machine if necessary. With these tips in mind, you can ensure smooth and efficient communication for your embedded systems projects.
