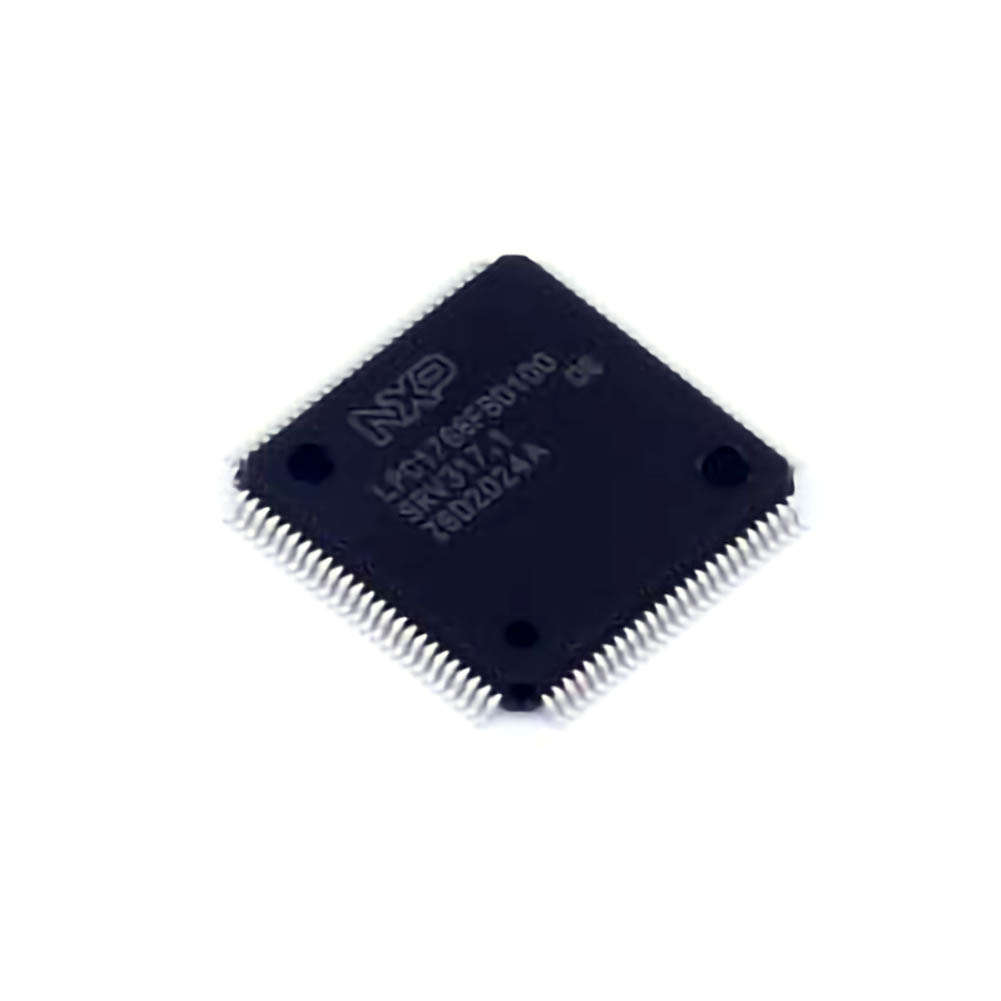

The LPC1768FBD100  is a popular microcontroller from NXP that is often chosen for embedded systems projects due to its high performance, flexibility, and robust features. However, like any technology, issues may arise during development or deployment, making troubleshooting essential to ensure seamless operation. Whether you’re working with the LPC1768FBD100 in a new design or maintaining an existing project, understanding common problems and how to fix them will help you save time and avoid frustration.

1. Power Issues

Power-related problems are among the most frequent issues encountered when working with microcontrollers like the LPC1768FBD100. Improper voltage or power supply interruptions can lead to unreliable behavior, system crashes, or failure to boot up.

Problem 1: Insufficient Power Supply

Ensure that your LPC1768FBD100 is receiving the correct supply voltage, typically 3.3V for the core and peripherals. An underpowered system will not function as expected, causing unpredictable behavior. Check the power supply connections, especially if you’re using a separate power module .

Solution:

Measure the voltage directly at the power input pins of the microcontroller. If the voltage is too low, replace the power supply or use a regulated source to ensure consistent operation. If the board has onboard voltage regulation, make sure it is functioning correctly.

Problem 2: Power Glitches or Transients

Even with proper voltage levels, transient spikes or glitches can interfere with the system’s operation, especially when the microcontroller is under heavy load or during startup.

Solution:

Use capacitor s (typically 100nF ceramic capacitors) near the power pins to smooth out fluctuations. Implementing proper decoupling at various points of the system can minimize these issues. Also, make sure the power supply is stable and able to handle peak current demands.

2. Booting and Reset Failures

Boot-related issues, especially after a firmware update or reconfiguration, are common problems. The LPC1768FBD100 microcontroller features a built-in reset circuit, but there may still be circumstances that prevent it from booting correctly.

Problem 1: Missing or Inaccurate Bootloader

If the bootloader is corrupted or missing, the system may not boot properly or fail to load the operating system.

Solution:

Reprogram the bootloader via the ISP (In-System Programming) interface . Make sure the bootloader configuration matches the system setup and the boot process is initiated correctly.

Problem 2: Inconsistent Reset Behavior

Sometimes the reset pin does not properly trigger the system reset or the microcontroller doesn’t enter the correct startup sequence.

Solution:

Double-check the reset circuitry. Ensure the reset pin is not being held low unintentionally and the pull-up resistors are configured correctly. If using an external reset IC, confirm it’s functioning properly.

3. Communication Failures

Many applications rely on the communication interfaces of the LPC1768FBD100, such as UART, I2C, SPI, or CAN. Issues with these interfaces can prevent data exchange between the microcontroller and other components.

Problem 1: UART Communication Failures

If your UART communication isn’t working, the issue could lie in incorrect baud rates, mismatched configurations, or even hardware faults like faulty wiring or damaged pins.

Solution:

Start by verifying the baud rate settings, parity bits, and stop bits. Ensure both the transmitting and receiving devices are configured identically. Additionally, check the wiring and make sure the UART pins are properly connected and not shorted.

Problem 2: I2C or SPI Bus Errors

The I2C and SPI buses are prone to issues like bus contention, improper addressing, or electrical noise, which can cause data corruption or complete failure in communication.

Solution:

Ensure that devices on the bus have unique addresses. Use pull-up resistors where needed, and verify the clock speed is appropriate for the devices connected. For SPI, check that the chip select line is correctly managed, and the wiring is correct. Bus contention can be avoided by ensuring that only one master is driving the bus.

4. Memory and Data Integrity Issues

Memory-related problems are another source of frustration when using the LPC1768FBD100. These problems can manifest in various ways, including incorrect data storage or erratic program behavior.

Problem 1: Flash Memory Corruption

Flash memory corruption often occurs when the device is powered off improperly during a write operation, or the wear leveling is not adequately managed. This can lead to unpredictable behavior or system crashes.

Solution:

Implement proper power-down sequences to ensure that data is written to flash only when the power supply is stable. Consider using external EEPROM or other non-volatile memory devices with better endurance for critical data storage. If the internal flash memory is corrupted, try reprogramming the microcontroller through an external programmer or bootloader.

Problem 2: RAM Instability or Data Corruption

RAM issues, such as memory leaks or corrupted data, can cause crashes or incorrect operation of your application.

Solution:

Use memory management techniques, like bounds checking, to avoid overflows and memory leaks. It’s also important to verify the integrity of your data structures and ensure that memory is initialized before use. Debugging tools like a memory debugger can help track down memory corruption issues.

5. Debugging and Software Issues

Software-related issues can sometimes be harder to diagnose, as they involve both the firmware and peripheral configurations. Debugging tools like JTAG and SWD (Serial Wire Debug) interfaces can help identify software bugs in the system.

Problem 1: Incorrect Peripheral Initialization

If a peripheral, such as a timer, PWM, or ADC, is not properly initialized, it may cause the microcontroller to behave unexpectedly.

Solution:

Review your initialization code carefully. Use the LPC1768FBD100’s extensive set of peripheral initialization functions to ensure all peripherals are configured correctly. Also, utilize hardware abstractions or drivers that simplify peripheral setup and ensure you’re following the correct initialization sequence.

Problem 2: Code Optimization Issues

Optimizing code can sometimes lead to unforeseen errors, especially in real-time systems where timing is critical. Optimizations might cause stack overflows, misaligned data access, or timing mismatches.

Solution:

Ensure you test the system thoroughly after applying any code optimizations, and use profiling tools to detect performance bottlenecks or memory issues. Be mindful of system timing, especially when working with real-time tasks, and avoid unnecessary optimizations that might introduce errors.

6. Overheating or Thermal Issues

Overheating is a less obvious but significant problem, especially in high-performance applications where the microcontroller is heavily utilized.

Problem: Overheating of the Microcontroller

Overheating can cause the system to crash or behave erratically, as the microcontroller may throttle its performance to prevent damage.

Solution:

Ensure that the LPC1768FBD100 is operating within its specified temperature range. Use heat sinks or improve airflow around the microcontroller. Additionally, monitor the temperature using an onboard temperature sensor (if available) or external thermal sensors to detect overheating issues early.

Conclusion

Troubleshooting the LPC1768FBD100 can seem daunting, but by systematically addressing common issues like power supply problems, boot failures, communication errors, and memory instability, you can significantly improve system stability and performance. Understanding these common troubleshooting techniques will enable you to maintain a smooth development process and avoid costly downtime. Always keep your development tools, documentation, and debugging strategies in mind, and you’ll be ready to tackle any issue that arises with confidence.
