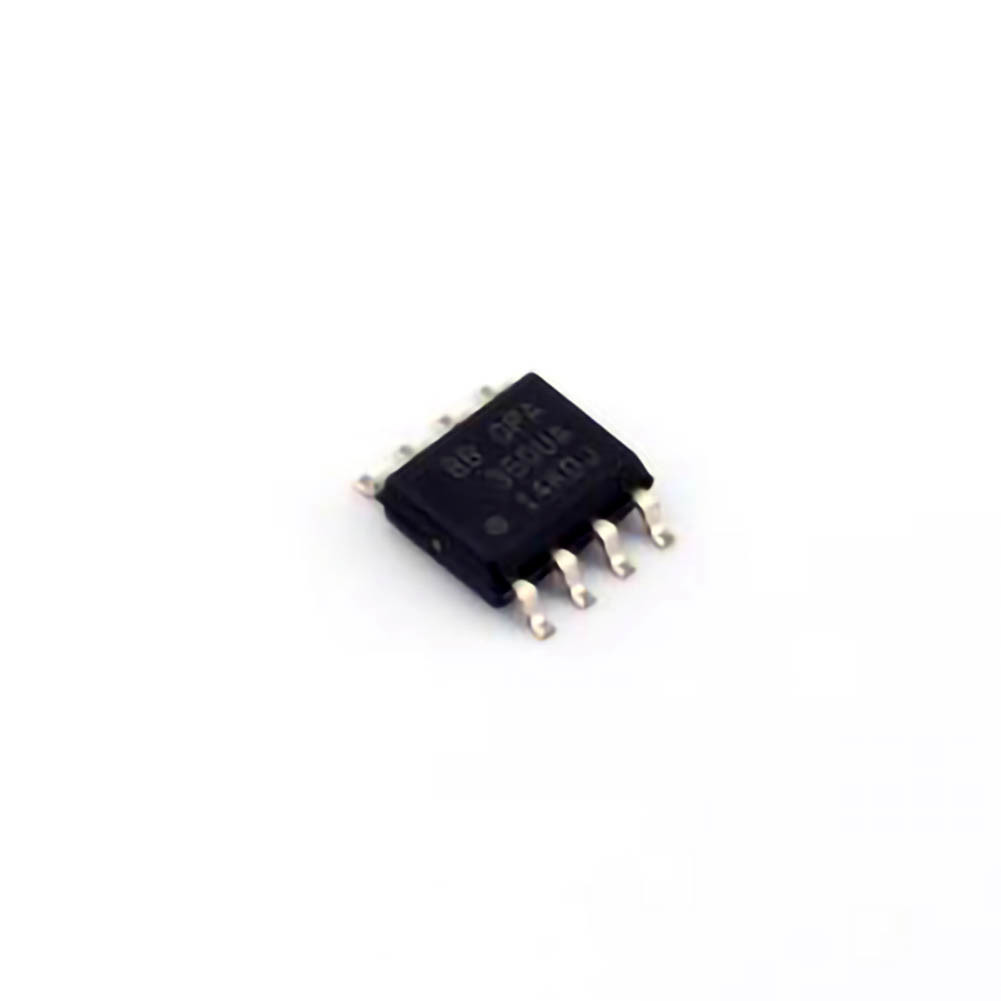

The Texas Instruments OPA350UA is a widely-used operational amplifier, known for its precision and low- Power performance. However, like any electronic component, it can experience issues that hinder its optimal functioning. This guide provides a detailed analysis of common troubleshooting scenarios and practical solutions for resolving them, ensuring that your OPA350UA continues to perform efficiently in your circuits.

OPA350UA troubleshooting, operational amplifier issues, OPA350UA solutions, electronics troubleshooting, OPA350UA performance, circuit problems, amplifier fixes, OPA350UA common issues, operational amplifier maintenance

Understanding the OPA350UA and Common Issues

The OPA350UA is a precision, low-power operational amplifier designed to operate efficiently in a wide range of applications, from signal processing to sensor interfacing. While this op-amp is highly reliable, like any component, it can encounter issues that affect its performance. In this first part, we will explore the common troubleshooting scenarios that users may face when working with the OPA350UA.

1. Power Supply Instability

One of the first issues that users may encounter when using the OPA350UA is power supply instability. The OPA350UA is a low-power device that requires a stable and clean power supply to function properly. If the power supply is noisy or fluctuating, it can lead to poor performance, noise in the output signal, or even total failure to operate.

Symptoms of Power Supply Instability:

Unstable output voltage

Increased noise levels in the output signal

No output signal at all

Solutions:

Ensure that the power supply voltage is within the specified range for the OPA350UA, typically between 2.7V and 5.5V.

Use decoupling capacitor s (e.g., 0.1 µF ceramic and 10 µF tantalum) near the power pins of the op-amp to filter out noise.

Check the stability of the power source and ensure there are no significant fluctuations or voltage dips.

2. Output Clipping or Saturation

Output clipping or saturation is another common issue that can arise with the OPA350UA. This occurs when the output voltage exceeds the op-amp’s output swing capability, causing the output to “clip” at the supply rails. This issue is often caused by improper input signal levels, incorrect feedback resistors, or the op-amp being driven beyond its output voltage swing limitations.

Symptoms of Output Clipping:

Distorted or flat output signal

Output voltage stuck at the supply voltage level (e.g., 5V or 0V)

Loss of linearity in the output signal

Solutions:

Check the input signal amplitude. Ensure it is within the op-amp’s input common-mode range and does not exceed the op-amp’s voltage limits.

Review the feedback network to ensure the proper gain setting is used. If the gain is too high, the output will be forced into saturation.

Adjust the circuit to ensure the input signal does not cause the op-amp to exceed its output swing capabilities, especially in high-gain configurations.

3. Oscillation and Instability

Oscillation is another issue that can plague the performance of the OPA350UA. It occurs when the op-amp unexpectedly oscillates at a high frequency, producing unwanted sine-wave noise at the output. This problem typically arises due to improper circuit layout, inadequate compensation, or the op-amp being driven into conditions where it cannot stabilize.

Symptoms of Oscillation:

High-frequency noise at the output

Unpredictable or erratic behavior of the output signal

Amplifier generating a continuous waveform that is not related to the input signal

Solutions:

Use compensation techniques, such as adding a small capacitor (e.g., 10pF to 100pF) from the op-amp’s output to the inverting input, to stabilize the amplifier.

Ensure that the op-amp is operating within the appropriate frequency range for the application. Use feedback resistors that are not too large to avoid instability.

Check the PCB layout to ensure short and clean signal paths, minimizing parasitic inductance and capacitance that can contribute to oscillations.

4. Input Bias Current Issues

Another common issue with op-amps like the OPA350UA is input bias current, which can affect the accuracy of the output signal. Input bias current is the small DC current that flows into or out of the op-amp’s input terminals. If the circuit is not designed to account for this current, it can lead to errors, especially in high-impedance circuits.

Symptoms of Input Bias Current Issues:

Offset errors at the output

Distorted output signal in high-impedance circuits

Deviation from expected signal behavior

Solutions:

Use matched resistors for the input network to reduce the effect of the input bias current on the output.

If precision is critical, consider using op-amps with lower input bias current or additional offset compensation circuitry.

For high-impedance input circuits, ensure the impedance at the non-inverting and inverting inputs are balanced.

Advanced Troubleshooting and Solutions for OPA350UA

In the second part of this guide, we’ll dive into more advanced troubleshooting and provide solutions for less common, but potentially more challenging, issues that could affect the OPA350UA.

1. Output Offset Voltage Problems

Output offset voltage can be a source of significant trouble in precision circuits, especially where small signal amplification is required. This voltage difference between the output and the expected voltage can lead to inaccurate results and errors in signal processing.

Symptoms of Output Offset Voltage Issues:

A constant voltage offset at the output even with no input signal

Incorrect output values in precision applications

Solutions:

Use external offset trimming circuits to nullify the output offset voltage. Many op-amps, including the OPA350UA, allow for external offset adjustment via a potentiometer or offset null pins.

Carefully review the datasheet specifications for typical offset voltage values, and ensure your circuit’s application tolerances are within acceptable limits.

Implement low-pass filters if the offset voltage is contributing to noise or instability in sensitive measurements.

2. Incorrect Pin Configuration or Miswiring

Miswiring or incorrect pin configuration is a common issue when integrating the OPA350UA into new circuits. The pinout must be correctly aligned, or else the op-amp may not function as expected, or could be damaged in extreme cases.

Symptoms of Miswiring:

No output signal or unresponsive op-amp

Unexpected behavior when the input signal is applied

Solutions:

Double-check the pinout of the OPA350UA. Ensure that the power supply pins (V and V-) are correctly connected and that the input and output pins are wired according to the intended design.

Use a multimeter to verify connections on the PCB to rule out short circuits or poor solder joints that could cause operational failures.

3. Loading Effects on Output

When the OPA350UA drives a load, the load resistance and capacitance can influence its behavior, especially in high-speed applications. Heavy loads can cause output distortion or even lead to op-amp failure if not properly accounted for.

Symptoms of Loading Effects:

Reduced output swing under load

Loss of linearity in the output signal

Output voltage distortion when driving capacitive loads

Solutions:

Ensure that the load is within the op-amp’s specified output drive capabilities.

Use a buffer stage or an additional driver circuit to isolate the op-amp from excessive load demands.

For capacitive loads, add a series resistor or compensation capacitor to reduce instability.

4. Temperature Sensitivity and Drift

Temperature variations can significantly affect the performance of the OPA350UA. As temperature changes, the op-amp’s input offset voltage, bias current, and other characteristics can drift, causing errors in the output signal.

Symptoms of Temperature Sensitivity Issues:

Drift in the output signal over time, especially when the circuit is exposed to changing environmental conditions

Deviation from expected results due to temperature fluctuations

Solutions:

Use temperature compensation techniques, such as matching the thermal coefficients of components in the circuit.

Use precision resistors and low-offset op-amps to minimize the impact of temperature drift.

Shield the circuit from environmental changes or incorporate temperature sensors to monitor and adjust the performance as needed.

Conclusion

The OPA350UA operational amplifier is a versatile and reliable component, but like all electronics, it can encounter issues that hinder its performance. By understanding common problems such as power supply instability, output clipping, oscillations, and input bias currents, as well as implementing the recommended troubleshooting techniques and solutions, users can significantly improve the performance and longevity of their circuits. For more complex issues, such as offset voltage problems, loading effects, and temperature sensitivity, advanced solutions involving circuit design modifications and external compensation can help ensure optimal operation in demanding applications.

By following these tips and keeping the OPA350UA’s specifications and best practices in mind, you can troubleshoot and resolve most common problems, ensuring reliable and accurate operation for your projects.
