Common Troubleshooting Issues with STM32F427VGT6

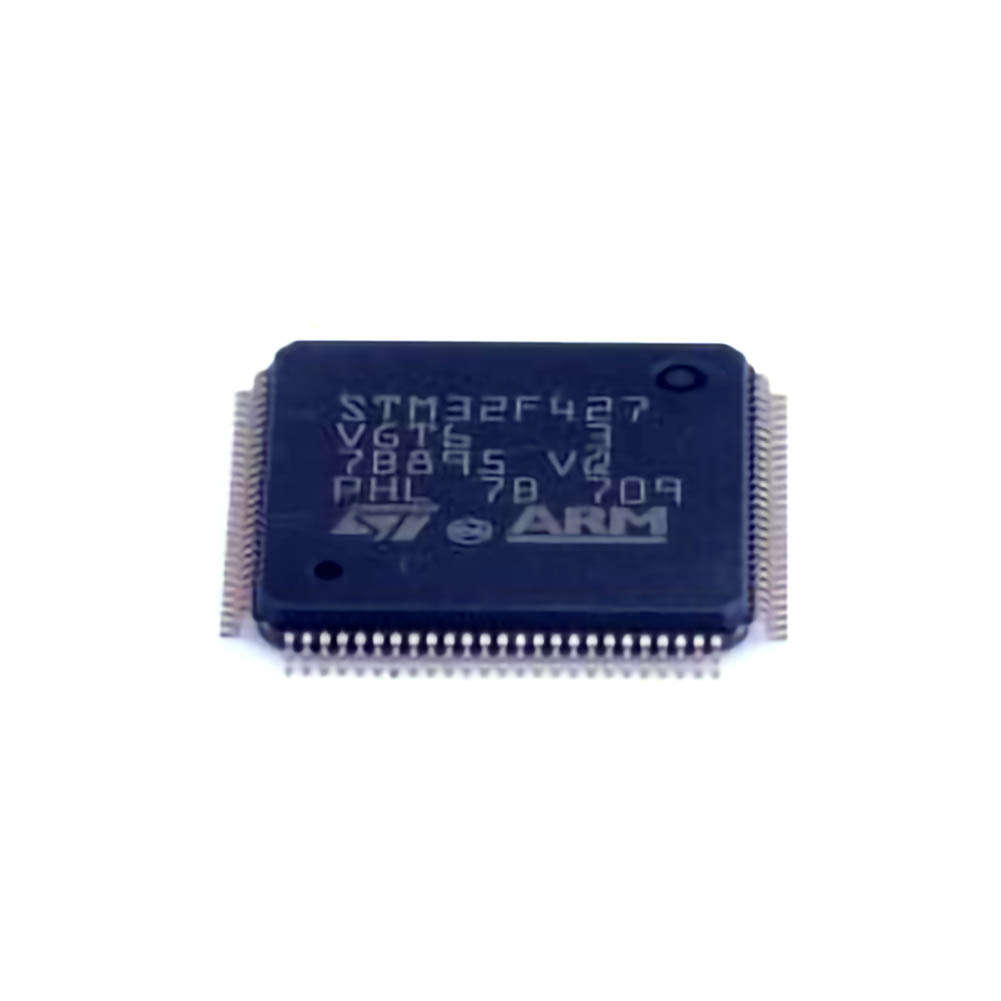

The STM32F427VGT6 is a Power ful microcontroller from STMicroelectronics, widely used in embedded system development for a range of applications, from industrial automation to IoT projects. Its robust features and high-performance processing capabilities make it an ideal choice, but as with any complex system, developers may encounter challenges during the development process. This article aims to address some of the most common troubleshooting problems you might face while working with the STM32F427VGT6 and offer actionable solutions.

1. Power Supply Issues

One of the most frequent issues encountered during development is related to power supply. If the STM32F427VGT6 isn't receiving a stable and correct voltage, it can result in malfunctioning or failure to boot.

Symptoms:

The microcontroller fails to power up.

Random resets or reboots during operation.

Unstable or erratic behavior in peripherals and sensors.

Potential Causes:

Incorrect voltage supply (the STM32F427VGT6 typically requires 3.3V for operation).

Insufficient current from the power source.

Faulty voltage regulator or power path components.

Power supply noise or ripple affecting operation.

Solution:

Double-check the voltage regulator and ensure it is delivering 3.3V to the board.

Use a multimeter or oscilloscope to monitor the voltage and current draw. A stable, noise-free power supply is crucial.

Consider adding decoupling capacitor s close to the power pins of the microcontroller to filter out noise.

If using USB power, make sure that the USB port can provide sufficient current for the board and peripherals.

2. Boot Mode Selection Problems

The STM32F427VGT6 offers several boot modes (such as boot from flash, system Memory , or external devices), and incorrect configuration of the boot pins can prevent the device from booting properly.

Symptoms:

The microcontroller fails to start up.

The system hangs during startup or enters a non-responsive state.

Potential Causes:

Incorrect configuration of boot pins (BOOT0 and BOOT1).

Flash memory or external device configuration issues.

Incorrect bootloader setup.

Solution:

Ensure the BOOT0 pin is configured correctly (usually connected to GND for booting from flash memory).

Check the configuration of the BOOT1 pin to ensure it's in the correct state based on your selected boot method.

Verify that the flash memory and bootloader are correctly set up. Use ST’s STM32CubeMX or STM32CubeProgrammer to configure the boot settings and firmware properly.

If the device is configured to boot from external memory, ensure that the memory is accessible and properly initialized.

3. Debugging and JTAG/SWD Issues

Another common problem encountered by STM32F427VGT6 developers is the inability to establish a stable connection between the microcontroller and debugging tools (e.g., ST-Link, JTAG, or SWD).

Symptoms:

Debugging interface cannot detect the device.

Unable to step through code or set breakpoints.

Debugger fails to connect or times out.

Potential Causes:

Incorrectly configured debug pins (SWDIO, SWCLK).

Faulty ST-Link or debugger.

Bootloader interfering with debugging interface.

Incorrect firmware or device configuration.

Solution:

Verify that the SWDIO and SWCLK pins are properly connected and not conflicting with other peripheral pins.

Check the debugger connections for correctness. Ensure that the target voltage is within expected limits and that there are no shorts or open circuits on the JTAG or SWD lines.

Use STM32CubeProgrammer to reset the microcontroller, disable the bootloader, and ensure the microcontroller is in a state that allows debugging.

If using ST-Link, make sure you are using the latest firmware for the debugger and that it’s properly recognized by the IDE.

4. Flash Memory Issues

Flash memory corruption or read/write errors are common issues that can cause unexpected behavior, including data loss, failure to boot, or code misbehavior.

Symptoms:

The microcontroller behaves erratically after programming.

Firmware updates fail.

Data stored in flash memory is lost or corrupted.

Potential Causes:

Programming errors (e.g., incorrect memory addresses or overlapping regions).

Power interruptions during flash writes.

Inadequate flash memory protection configuration.

Incompatibility between the firmware and flash memory settings.

Solution:

Always ensure that you are writing to the correct flash memory regions and not overwriting critical areas (e.g., bootloader area or vector table).

Make sure that power is stable during programming. Power loss during flash programming can cause corruption.

Enable and configure write protection in the STM32CubeMX settings to prevent accidental writes to critical areas.

Use STM32CubeProgrammer to reprogram the flash memory and clear any corrupted sectors.

5. Peripherals Not Working

Peripheral issues, whether with UART, SPI, I2C, or GPIO, are also common when developing with the STM32F427VGT6. These issues can stem from incorrect configuration, faulty wiring, or software-related problems.

Symptoms:

Communication with sensors or external devices fails.

GPIO pins do not function as expected.

Data transfer protocols (e.g., SPI or I2C) fail intermittently.

Potential Causes:

Incorrect configuration of peripheral registers ( Clock sources, baud rates, pin modes).

Miswiring of peripheral connections.

Conflicts between different peripherals using the same pins or resources.

Incorrect handling of interrupts or DMA channels.

Solution:

Ensure that all peripherals are properly initialized in software (using STM32CubeMX or manually in your code).

Verify the wiring connections for each peripheral, checking the correct pin mapping for each function (for example, ensuring that the correct pins are assigned to SPI or UART).

Use STM32CubeMX to check for conflicts between peripherals and ensure that they are not sharing the same resources.

Enable debugging features like logging to check communication status and monitor peripheral activity.

Advanced Troubleshooting and Solutions for STM32F427VGT6

6. Clock and Timing Issues

Clock-related problems are particularly challenging because they can lead to system instability or incorrect behavior without clear error messages.

Symptoms:

The microcontroller seems to run at the wrong speed.

Timing-dependent functions (e.g., delays, timeouts) fail.

Peripherals that depend on specific clock speeds malfunction.

Potential Causes:

Misconfigured PLL settings or external oscillator.

Incorrect clock source selection (e.g., switching from HSE to HSI or vice versa).

Clock tree issues leading to incorrect frequencies.

Solution:

Use STM32CubeMX to configure and visualize the clock tree, ensuring all the clocks are set correctly.

Check that the external crystal oscillator (HSE) is properly installed and connected, and the PLL settings are configured according to your application’s needs.

Use the STM32F427VGT6's internal calibration options to ensure accurate clock speeds, or fine-tune the PLL configuration to match your desired frequencies.

If working with peripherals like UART or I2C, verify that their clock settings match the expected baud rate or frequency.

7. Interrupt Handling Problems

Interrupt-related issues can be subtle, especially if the microcontroller is not responding to interrupts or is experiencing issues with interrupt priorities.

Symptoms:

Interrupts are not being triggered.

The system hangs when waiting for an interrupt.

Incorrect interrupt handling leads to missed or repeated interrupts.

Potential Causes:

Incorrect interrupt vector table.

Conflicts between interrupt priorities.

Misconfigured NVIC (Nested Vector Interrupt Controller) settings.

Solution:

Ensure that the interrupt vector table is correctly placed in memory, and that interrupt handlers are defined and declared properly.

Check the interrupt priority settings in the NVIC. STM32F427VGT6 allows setting priority levels, so ensure that higher priority interrupts aren’t being masked by lower priority ones.

Use STM32CubeMX to configure interrupt priorities and enable/disable the required peripherals.

Use debugging techniques, such as setting breakpoints in interrupt service routines (ISRs), to track interrupt handling in real time.

8. Software Development Issues

Software-related issues can range from simple bugs to more complex misconfigurations in the development environment.

Symptoms:

Unexpected behavior in firmware.

Unsuccessful builds or compilation errors.

Problems linking code or libraries.

Potential Causes:

Incorrect use of libraries or driver functions.

Misconfiguration of the development environment.

Compiler optimization or memory alignment issues.

Solution:

Review your code and ensure you are using the latest libraries and correct peripheral drivers for STM32F427VGT6. Check the STMicroelectronics website or GitHub for firmware updates.

Make sure your IDE and toolchain are correctly configured for STM32F427VGT6 development.

Check for memory alignment issues, especially if using DMA or direct memory access, and ensure that your code adheres to the correct memory model.

Test your code in smaller units and module s to isolate potential problems.

9. Thermal and Environmental Considerations

Finally, environmental issues such as excessive heat or unsuitable conditions can lead to poor performance or even hardware failure.

Symptoms:

The device heats up significantly.

Intermittent failures under heavy load or extended use.

Potential Causes:

Insufficient cooling or heat dissipation.

Operating in extreme environmental conditions (e.g., temperature extremes, humidity).

Overclocking or using the device beyond its rated specifications.

Solution:

Ensure the microcontroller is properly heatsinked or placed in an environment with adequate ventilation.

Keep the operating temperature within the specified range of the STM32F427VGT6.

Use temperature sensors and monitoring software to track and mitigate overheating.

Conclusion

Troubleshooting and resolving issues in STM32F427VGT6 development can be challenging, but with systematic approaches and proper tools, most problems can be identified and fixed efficiently. By addressing power supply issues, debugging complexities, clock misconfigurations, and peripheral problems, developers can ensure that their projects run smoothly. Always keep the STM32 documentation and community resources handy, and don’t hesitate to leverage tools like STM32CubeMX, CubeIDE, and STM32CubeProgrammer to simplify the debugging process.
