Introduction to STM8S003F3P6 TR Troubleshooting

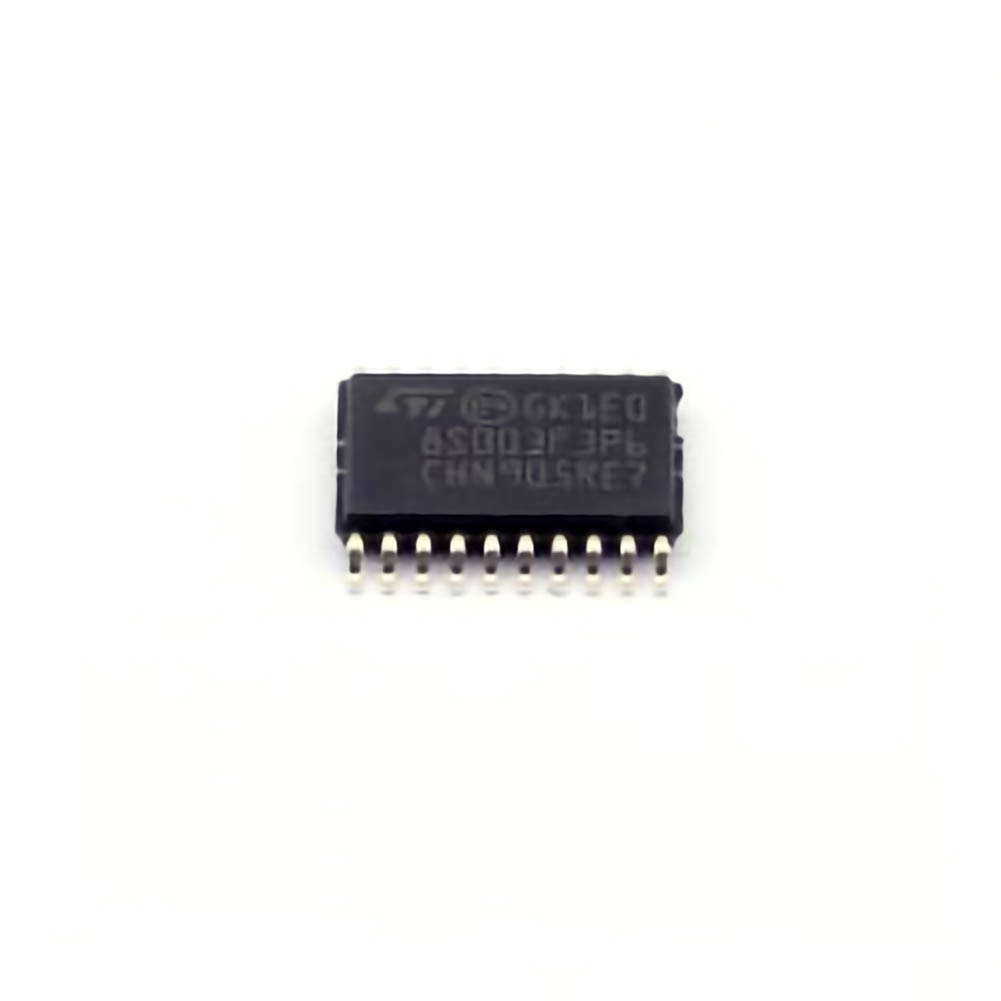

The STM8S003F3P6TR microcontroller, part of the STM8 family from STMicroelectronics, is a versatile and cost-effective solution for a wide range of embedded systems. With its 8-bit architecture, various Communication interface s, and reliable performance, it’s an excellent choice for many developers working on automotive, industrial, and consumer electronics projects. However, like any electronic component, the STM8S003F3P6TR is not immune to issues that may arise during development or operation.

In this first part of the article, we will explore the most common problems encountered with the STM8S003F3P6TR and provide practical troubleshooting tips for developers to resolve them. Whether you’re a novice embedded developer or an experienced engineer, understanding how to diagnose and fix issues with this microcontroller is essential for efficient project completion.

Power Issues: Diagnosing Power Supply Problems

One of the most frequent problems with any microcontroller is related to the power supply. The STM8S003F3P6TR requires a stable power supply to function correctly, typically operating at 2.95 to 5.5 volts. Power issues can cause a range of problems, from the device not powering on to erratic behavior during operation. Here are some key steps to diagnose power-related problems:

Check Power Supply Voltage: Use a multimeter to ensure that the voltage supplied to the microcontroller is within the specified range. If the voltage is too high or too low, it could result in improper functioning or permanent damage to the microcontroller.

Inspect Ground Connections: Ensure that the ground pins of the STM8S003F3P6TR are properly connected to the system’s ground. A floating or poorly connected ground can cause instability in the microcontroller’s performance.

Look for Power Supply Ripple: Even if the power supply seems stable at first glance, there may be ripple or noise that affects the microcontroller’s operation. Use an oscilloscope to check for fluctuations in the power supply and add decoupling capacitor s to stabilize the supply.

Clock and Reset Issues: Ensuring Proper Initialization

The STM8S003F3P6TR relies on its clock and reset systems to initialize and function correctly. If either the clock or reset components are not configured or functioning properly, the microcontroller might not start as expected.

Verify the Clock Source: The STM8S003F3P6TR supports multiple clock sources, including an internal RC oscillator and external crystals or resonators. If you’re using an external oscillator, double-check the connections and ensure that the oscillator is operating within the correct frequency range.

Check the Reset Circuit: A malfunctioning reset circuit can prevent the microcontroller from starting properly. Ensure that the reset pin is being driven low long enough for the system to initialize and that the reset circuitry is designed to meet the microcontroller’s specifications.

Inspect Software Configuration: Ensure that the software is correctly configured to use the appropriate clock source and that the reset sequence is properly implemented in the code. Incorrect software initialization can cause the microcontroller to enter an unintended state.

Peripheral Communication Problems: Debugging I2C, SPI, and UART Interfaces

The STM8S003F3P6TR includes a range of communication interfaces such as I2C, SPI, and UART, which are commonly used to connect the microcontroller to other devices. Troubleshooting issues related to these peripherals can be challenging but essential for smooth system integration.

Check Pin Configuration: One of the most common mistakes is incorrect pin configuration. Ensure that the microcontroller’s pins are correctly configured as input or output, and that the proper peripheral functions (e.g., I2C, SPI, UART) are selected in the code.

Inspect Signal Integrity: Use an oscilloscope to check the signal integrity of the communication lines. Poor signal quality due to noise, improper impedance matching, or faulty components can cause communication errors. Look for abnormal waveforms, such as signals that are too noisy or have excessive jitter.

Test with Simple Devices: When troubleshooting communication problems, start by connecting simple, known-good devices to the STM8S003F3P6TR, such as an I2C EEPROM or an SPI flash Memory . This can help isolate the problem to either the microcontroller or the connected peripheral.

Review Baud Rates and Timing : Communication timing is critical for proper data exchange. Ensure that the baud rate, clock speed, and other timing parameters are correctly configured in both the microcontroller and the connected peripheral devices.

Firmware Debugging: Handling Software-Related Issues

Software bugs can often manifest as hardware issues, making it difficult to pinpoint the root cause. When the STM8S003F3P6TR appears to be malfunctioning, it’s important to rule out any software-related problems before delving deeper into the hardware.

Check for Firmware Corruption: If the firmware on the STM8S003F3P6TR becomes corrupted, the microcontroller may behave erratically. Use a programmer/debugger to reload the firmware and check if the problem persists.

Use a Debugger: The STM8S003F3P6TR supports debugging using the SWIM (Single Wire Interface for Memory) interface. This allows you to set breakpoints, step through the code, and inspect variables in real time to identify any logical errors in the firmware.

Verify Memory Usage: If your firmware is too large for the available flash or RAM, it can lead to unexpected behavior. Check the memory usage in your development environment to ensure that you are not exceeding the available resources.

Advanced Troubleshooting and Preventative Measures

In the second part of this article, we will dive into more advanced troubleshooting techniques and preventative measures to ensure that your STM8S003F3P6TR-based projects run smoothly over the long term. From advanced debugging tools to best practices in PCB design, these tips will help you avoid common pitfalls and increase the reliability of your designs.

Advanced Troubleshooting and Preventative Measures

Now that we’ve covered the basic troubleshooting techniques, let’s explore more advanced methods to address complex issues that may arise with the STM8S003F3P6TR microcontroller. In addition to fixing problems, it’s crucial to implement preventative measures to avoid common pitfalls during development and deployment.

Advanced Debugging Tools: Leveraging SWIM and External Debuggers

While basic debugging methods such as using the built-in debugger or an oscilloscope can help resolve many issues, more complex problems may require advanced debugging tools.

Using SWIM for In-Depth Debugging: The STM8S003F3P6TR supports the SWIM interface, which allows developers to interact with the microcontroller’s internal registers, memory, and peripherals. This interface can be used with specialized tools to perform low-level debugging, such as reading memory contents, inspecting CPU registers, and monitoring peripheral behavior.

Utilizing External Debuggers: In addition to SWIM, consider using an external JTAG debugger if supported by your development environment. JTAG debugging provides an even deeper level of insight into the microcontroller’s operation, enabling step-by-step code execution and real-time monitoring of internal variables.

Automated Debugging and Test Suites: For large projects or complex embedded systems, integrating automated testing into your development workflow can save time and catch issues early. Use software frameworks that support automated unit testing and hardware-in-the-loop (HIL) testing to ensure that each component functions as expected.

PCB Design Considerations: Preventing Hardware Issues

Many issues with the STM8S003F3P6TR microcontroller stem from poor PCB (printed circuit board) design. By paying attention to the following design considerations, you can prevent many common problems before they arise:

Decoupling Capacitors : Proper placement of decoupling capacitors close to the power pins of the STM8S003F3P6TR is critical to reduce power noise and ensure stable operation. Use ceramic capacitors with values between 0.1 µF and 10 µF to filter high-frequency noise.

Ground Plane Design: A solid, continuous ground plane is essential to minimize noise and signal interference. Avoid splitting the ground plane in areas where sensitive components like the microcontroller are located.

Signal Integrity: Ensure that high-speed signals (e.g., SPI, I2C) have proper impedance control and are routed with short, direct traces. Avoid long traces, as they can introduce delays and signal reflections.

Thermal Management : While the STM8S003F3P6TR is not a high-power device, it still generates heat under certain conditions. Make sure your PCB layout provides adequate cooling, especially if the microcontroller is running at high clock speeds or is part of a larger, power-hungry system.

Firmware Optimization: Improving Reliability and Performance

Once your hardware is set up correctly, the next step is to focus on optimizing the firmware. Well-optimized code can prevent many runtime issues, improve stability, and extend the lifespan of your project.

Efficient Interrupt Handling: Interrupts are an essential part of embedded systems, but poorly designed interrupt service routines (ISRs) can lead to system instability. Ensure that your ISRs are short and efficient, avoiding long delays or unnecessary operations.

Low-Power Operation: If your project needs to operate in low-power conditions, make use of the STM8S003F3P6TR’s various low-power modes. By entering sleep or halt modes when the system is idle, you can significantly extend battery life in portable applications.

Error Handling and Recovery: Implement robust error handling and recovery mechanisms in your firmware to deal with unexpected issues such as communication failures or sensor errors. This ensures that your system can continue operating smoothly even when encountering occasional glitches.

Preventative Maintenance: Ensuring Long-Term Stability

Once your STM8S003F3P6TR-based system is up and running, it’s important to ensure its long-term reliability. Implementing regular maintenance and monitoring strategies can help catch issues before they escalate.

Watchdog Timers: Use the built-in watchdog timer to automatically reset the system if it becomes unresponsive or enters an unintended state. This is especially useful in critical applications where uptime is essential.

System Monitoring: Continuously monitor key system parameters such as voltage, temperature, and communication status. By setting up monitoring routines, you can detect problems early and take corrective action before they lead to system failure.

Firmware Updates: Periodically review and update the firmware to address any emerging bugs or compatibility issues. Ensure that you have a reliable method for updating the firmware in the field, whether via USB, serial, or wireless.

By following these advanced troubleshooting techniques and preventative measures, you can maximize the reliability and performance of your STM8S003F3P6TR-based systems, ensuring long-term success for your embedded projects.

This concludes our guide on STM8S003F3P6TR troubleshooting. Armed with these tips and techniques, you are now better equipped to tackle common issues and optimize your microcontroller-based projects. Whether you’re just starting or are an experienced developer, understanding the potential pitfalls and solutions will help you get the most out of the STM8S003F3P6TR. Happy debugging!
