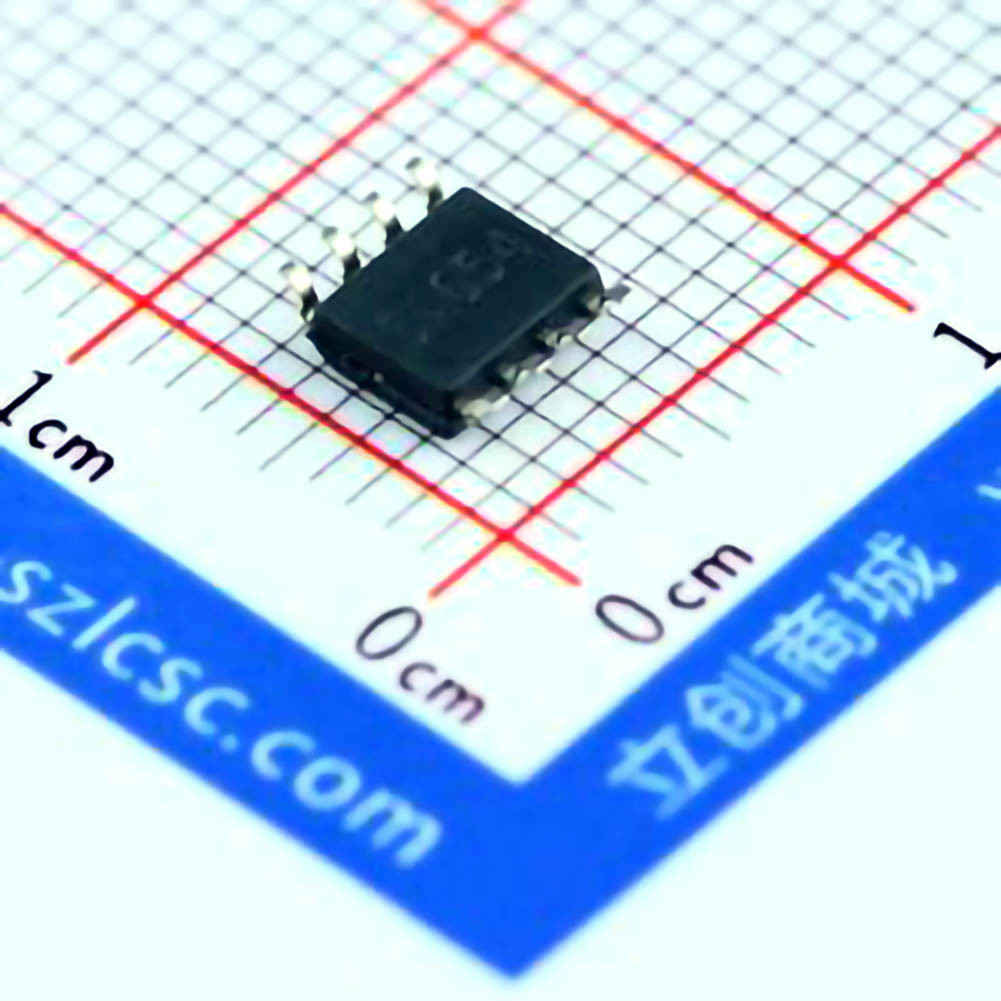

Understanding the TL062IDR Op-Amp and Common Issues

The Texas Instruments TL062IDR is a low-noise dual operational amplifier that has become a staple in a wide range of electronics, from audio equipment to signal processing and sensor applications. With its low input bias current and low offset voltage, it’s an excellent choice for precision circuits. However, like any s EMI conductor component, the TL062IDR can experience operational issues due to various factors, including improper configuration, external component failure, or even thermal issues.

Understanding common problems and their causes is key to effective troubleshooting. Below, we’ll explore some of the most frequent issues users encounter with the TL062IDR and how to identify and resolve them.

1. Incorrect Output Voltage

One of the most common issues with the TL062IDR is incorrect output voltage. The output of the operational amplifier may not behave as expected, even though the input signals are correct. This issue can stem from several potential causes.

Possible Causes:

Improper Power Supply Voltage: The TL062IDR operates with a supply voltage range of ±3V to ±18V, with a typical value of ±5V. If the supply voltage is too low or unstable, the op-amp may not function properly, causing output voltage discrepancies.

Incorrect Feedback Network: The feedback resistor network that governs the gain of the amplifier can be miscalculated or improperly connected. This could result in an incorrect output voltage, particularly in applications involving high-precision measurements.

Saturation or Clipping: If the input signal exceeds the op-amp’s input voltage range or if the gain is too high, the output may saturate at one of the supply rails, leading to clipping.

Solution:

Double-check the supply voltages to ensure they are within the op-amp’s specified range.

Inspect the feedback network to ensure proper values and correct connections.

If the issue is clipping, reduce the gain or ensure the input voltage stays within the op-amp’s input range.

2. Oscillations or Instability

Another common issue that can arise with the TL062IDR is oscillations or instability, especially in high-frequency circuits or circuits involving high gain. Oscillations can manifest as an unwanted high-frequency signal at the output or erratic behavior.

Possible Causes:

Lack of Compensation Capacitors : The TL062IDR, like many op-amps, may require compensation capacitor s in certain configurations to avoid oscillations. These capacitors help stabilize the frequency response of the op-amp.

Incorrect Circuit Layout: Poor layout can introduce parasitic inductance or capacitance, leading to instability. Long traces, especially in high-frequency applications, can act as antenna s, picking up noise or causing feedback loops.

Insufficient Decoupling: If the power supply is not adequately decoupled, voltage spikes or noise on the power rails can cause instability in the op-amp’s operation.

Solution:

Ensure the circuit includes proper compensation capacitors and, if necessary, add small capacitors (typically 10–100nF) between the power supply pins (V and V-) to reduce high-frequency noise.

Revise the PCB layout to minimize long trace lengths and ensure proper grounding techniques.

Add adequate decoupling capacitors close to the power pins of the TL062IDR, typically 100nF ceramic capacitors in parallel with a larger electrolytic capacitor for low-frequency stability.

3. High Offset Voltage or Drift

Offset voltage is the difference between the expected output and the actual output when the input is grounded. The TL062IDR features a low input offset voltage (max 3mV), but in some cases, you might notice a higher-than-expected offset voltage or drift over time, especially in sensitive analog circuits.

Possible Causes:

Temperature Variations: The offset voltage of the TL062IDR can drift with temperature. If the op-amp operates in an environment with fluctuating temperatures, this can lead to increased offset voltage.

Aging Effects: Over time, op-amps may experience increased offset voltage due to the aging of the internal components. This is particularly noticeable in circuits that require high precision.

Improper Biasing: Incorrect biasing of the op-amp input can also lead to increased offset voltage.

Solution:

Use offset nulling techniques if precision is critical. Many op-amps, including the TL062IDR, have dedicated pins (pins 1 and 5) for offset adjustment. By applying a small external voltage to these pins, you can nullify the offset voltage.

If your application is temperature-sensitive, consider using a temperature-compensated version of the op-amp or placing it in a thermally controlled environment.

Regularly calibrate circuits using the TL062IDR to account for drift over time.

Advanced Troubleshooting Techniques and Solutions

While the issues discussed in Part 1 can often be diagnosed with basic knowledge of circuit design and component behavior, advanced troubleshooting techniques are necessary for more complex scenarios. In this section, we’ll dive deeper into sophisticated diagnostic methods to ensure that the TL062IDR operates smoothly, especially in high-precision or high-frequency applications.

4. Excessive Power Consumption

Excessive power consumption can indicate that something is wrong with the circuit design or the op-amp itself. The TL062IDR is designed to be low-power, but power consumption can increase under certain conditions, such as incorrect load impedance or excessive input voltage levels.

Possible Causes:

Low Load Resistance : If the output is driving a very low resistance load, the op-amp may have to supply more current, leading to higher power consumption. This could also result in heating, which affects performance.

Improper Biasing: Incorrect biasing of the op-amp, especially in high-gain circuits, can result in excessive current draw.

Short Circuit: A short circuit in the output stage or a wiring error can cause the op-amp to draw more current than it normally would.

Solution:

Ensure that the load resistance is within the recommended range and does not draw excessive current. For most applications, a load of at least 10kΩ is recommended.

Review the biasing resistors in your circuit to ensure they are set appropriately for the desired operation. Use current-limiting resistors if necessary.

Check the entire circuit for shorts or wiring errors, especially around the output stage.

5. Input Protection Failure

If the input signal exceeds the op-amp’s specified voltage range, there is a risk of damaging the input transistor s. The TL062IDR is designed with some level of input protection, but it is still susceptible to over-voltage conditions.

Possible Causes:

Input Signal Exceeds the Voltage Range: The TL062IDR’s input voltage range is typically from V- to V , so input signals that exceed this range could cause damage to the internal transistors.

Incorrectly Grounded Inputs: If the inputs are not properly grounded or biased, the op-amp may behave erratically or become damaged over time.

Solution:

Ensure that the input signal never exceeds the op-amp’s supply rails. If necessary, use diodes or zener diodes to clamp the input voltage to safe levels.

Use series resistors on the input to limit the current in case of an over-voltage situation, and ensure proper grounding for all inputs.

6. Board-Level Troubleshooting

Sometimes, the issue is not with the op-amp itself but with the PCB or surrounding components. Common PCB-related issues include poor soldering, incorrect component placement, or interference from other components.

Possible Causes:

Cold or Broken Solder Joints: These can create intermittent connections that cause the op-amp to malfunction or behave unpredictably.

Electromagnetic Interference (EMI): If the circuit is placed near sources of electromagnetic interference, such as high-power switching devices or motors, the op-amp may pick up noise that interferes with normal operation.

Solution:

Inspect the PCB for cold or broken solder joints, especially around the pins of the TL062IDR. Use a magnifying glass or microscope to check for issues.

Route sensitive signal traces away from high-current or high-frequency traces. Shield the circuit if necessary to minimize the impact of EMI.

Use ground planes and ensure proper decoupling to avoid issues caused by noise.

Conclusion

The TL062IDR op-amp is a versatile and reliable component, but like any electronic device, it can encounter issues under certain conditions. By understanding the common problems and troubleshooting them effectively, you can ensure your circuits continue to perform optimally. Whether it’s correcting output voltage discrepancies, addressing oscillation issues, or fixing power consumption problems, a systematic approach to diagnosing and solving problems will help maintain the reliability of the TL062IDR and your entire system.
