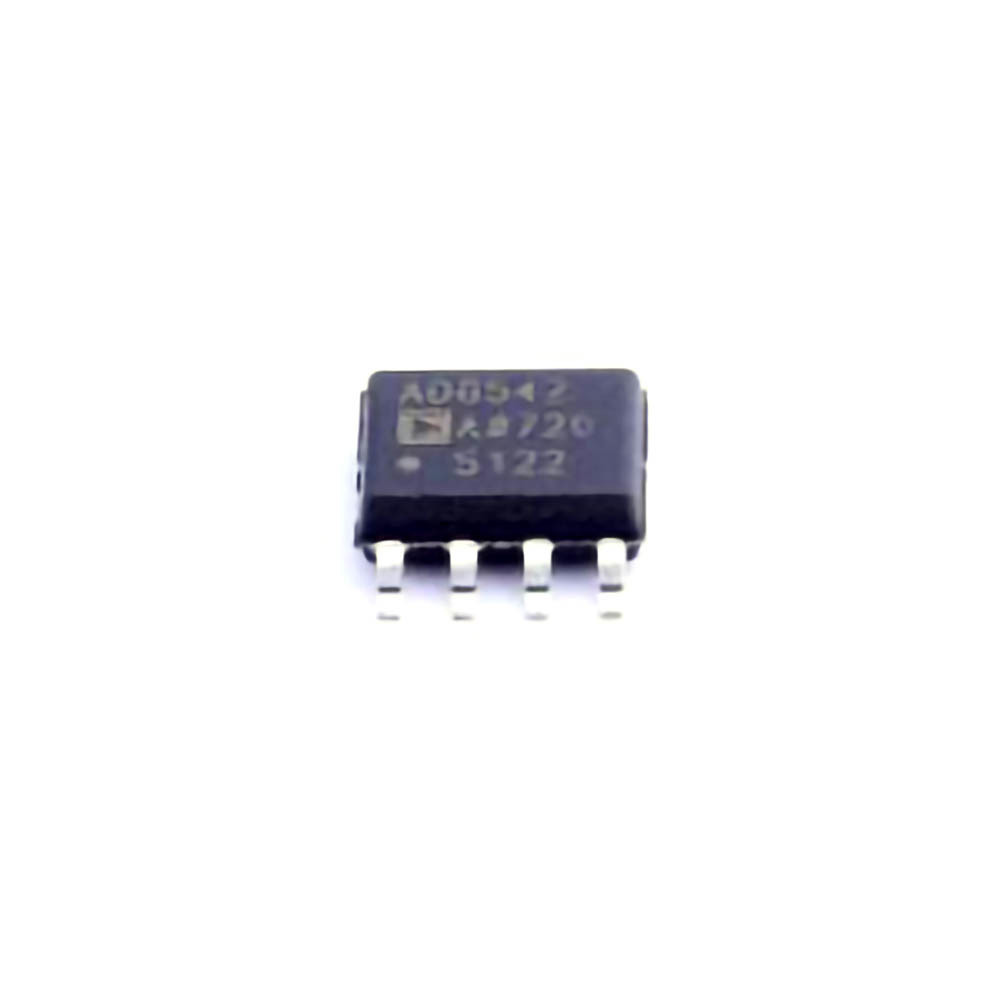

Understanding the AD8542ARZ Precision Operational Amplifier

In the realm of analog electronics, the precision operational amplifier plays an indispensable role in ensuring high-performance, stable signal processing. One such exemplary device in this category is the AD8542ARZ, a low- Power , precision op-amp manufactured by Analog Devices. Recognized for its ultra-low offset voltage, low noise characteristics, and high common-mode rejection ratio (CMRR), the AD8542ARZ is ideal for precision amplifier circuits where accuracy and reliability are paramount.

Key Features of the AD8542ARZ

The ADI AD8542ARZ comes packed with several key features that make it a top choice for precision amplifier applications. Some of its standout specifications include:

Ultra-Low Input Offset Voltage: With an input offset voltage as low as 25 µV (max), the AD8542ARZ significantly reduces drift and ensures the accuracy of the output signal even in low-voltage applications.

Low Input Bias Current: The AD8542ARZ features a low input bias current of just 1 pA (typical), which minimizes errors caused by the interaction with external Resistors in high-impedance circuits. This is crucial for applications like high-precision measurement systems or Sensor s.

Low Noise: One of the most important features of a precision op-amp is low noise performance. The AD8542ARZ delivers ultra-low voltage noise density (1.5 nV/√Hz at 1 kHz), making it ideal for noise-sensitive applications such as Audio amplification, sensor signal conditioning, or instrumentation.

Rail-to-Rail Output: The op-amp offers a rail-to-rail output, meaning that the output can swing very close to the supply rails, maximizing the useable output voltage range, which is particularly beneficial in low-voltage circuits.

Low Power Consumption: With a typical supply current of just 50 µA, the AD8542ARZ is well-suited for battery-powered or energy-efficient designs that require low quiescent current, such as portable instrumentation, remote sensors, or IoT devices.

High Common-Mode Rejection Ratio (CMRR): The AD8542ARZ has an exceptional CMRR of 120 dB, making it robust against noise and interference in real-world environments where common-mode signals might distort the intended signal.

Applications of the AD8542ARZ

Given its impressive specifications, the AD8542ARZ finds application in various fields that demand high precision and low noise. These include:

Precision Measurement Systems: The low offset voltage and noise characteristics of the AD8542ARZ make it ideal for precision measurement systems, including voltmeters, multimeters, and test equipment.

Sensor Signal Conditioning: The low input bias current and low noise of the AD8542ARZ make it well-suited for sensor signal conditioning, such as in temperature, pressure, or ch EMI cal sensors, where accurate and stable amplification is necessary.

Audio Amplifiers : For high-fidelity audio equipment, the AD8542ARZ can be used to amplify low-level audio signals without introducing distortion or noise, ensuring the integrity of the audio signal.

Battery-Powered Devices: With its ultra-low power consumption, the AD8542ARZ is perfect for battery-operated systems that need to operate for extended periods without significant power drain, such as portable medical devices, environmental monitors, and wireless sensor nodes.

Design Optimization Using AD8542ARZ in Precision Amplifier Circuits

While the AD8542ARZ offers excellent baseline performance out of the box, achieving optimal results in precision amplifier circuits requires careful attention to the design and layout of the surrounding components. Below are some design optimization strategies to maximize the performance of the AD8542ARZ in your precision amplifier circuits.

1. Minimizing Offset Voltage Errors

One of the most critical parameters for precision amplifiers is offset voltage. Even with the AD8542ARZ’s low offset voltage of 25 µV (max), it is essential to implement techniques to minimize offset-induced errors in critical applications.

Use of External Offset Nulling: In cases where the offset voltage of the AD8542ARZ might still affect performance, external offset nulling can be employed. This involves using a potentiometer or a precision DAC to adjust the op-amp's offset voltage to zero, further enhancing accuracy.

Tying Inputs to a Known Voltage: When designing the amplifier circuit, it is advisable to tie the inputs to a known voltage, such as ground, or use a Voltage Reference with low drift, ensuring that any offset voltage errors are minimized. This approach is crucial in precision applications such as ADC signal conditioning.

2. Improving Power Supply Rejection Ratio (PSRR)

The AD8542ARZ exhibits excellent PSRR, but when designing precision amplifiers, the stability and cleanliness of the power supply are paramount. Power supply noise can introduce unwanted signals into the system, degrading the overall performance.

Low-Noise Power Supply Design: Utilize low-noise, regulated power supplies with good filtering to minimize the impact of power supply fluctuations on the op-amp's performance. Placing decoupling Capacitors close to the power pins of the AD8542ARZ helps reduce power supply noise, ensuring cleaner and more accurate amplification.

Proper Grounding: For high-performance circuits, a solid grounding strategy is essential. Ensure that ground planes are used and that high-current return paths are separated from sensitive analog signal paths to prevent interference.

3. Optimizing Circuit Layout

The layout of the circuit board plays a crucial role in minimizing noise and maximizing the performance of the AD8542ARZ in a precision amplifier design. Here are several tips to optimize the layout:

Short, Low-Inductance Signal Paths: Keep the signal paths as short as possible to reduce noise pickup and signal degradation. Minimize the use of long traces, especially for high-frequency signals, to maintain signal integrity.

Decoupling capacitor s: Place appropriate decoupling capacitors (typically 0.1 µF ceramic and 10 µF tantalum) close to the op-amp’s power pins to filter out high-frequency noise and ensure stable operation.

Thermal Management : Precision amplifiers can be sensitive to temperature changes. Place heat-sensitive components away from heat sources, and if necessary, use heat sinks or thermal vias to dissipate heat and prevent temperature-induced offset errors.

4. Low-Noise Design Techniques

To maximize the low-noise performance of the AD8542ARZ, follow these techniques:

Minimize External Noise Sources: Shield the circuit from external noise sources, including electromagnetic interference (EMI) from nearby components or power lines. Use proper grounding and shielding to isolate the sensitive analog circuitry.

Choose Low-Noise Resistors: In the feedback and input resistors, use low-noise, precision resistors (such as metal-film resistors) to avoid introducing thermal noise, which can degrade the signal quality.

Reduce Gain Stages: Minimize the number of amplification stages in the signal path to reduce noise accumulation. If necessary, use higher-gain precision amplifiers such as the AD8542ARZ to achieve the required amplification with fewer stages.

5. Advanced Signal Conditioning Techniques

In some high-precision applications, signal conditioning becomes necessary to further refine the signal. Techniques such as differential amplification, filtering, and level shifting can be used to enhance the performance of your precision amplifier circuit.

Differential Amplification: If the signal has a large common-mode component, using a differential amplifier can help reject common-mode noise and improve the accuracy of the measurement.

Active filters : Implementing active low-pass or band-pass filters in conjunction with the AD8542ARZ can help attenuate unwanted high-frequency noise while preserving the integrity of the desired signal.

Voltage References: Use precision voltage references to establish a stable reference voltage for the AD8542ARZ’s inputs, ensuring that the op-amp’s output remains within the desired range.

Conclusion

The AD8542ARZ is an outstanding choice for precision amplifier circuits, offering a unique combination of low offset voltage, low noise, and low power consumption. To achieve the best possible performance, engineers must pay attention to design details such as offset voltage compensation, power supply cleanliness, circuit layout, and noise reduction techniques. By implementing these optimization strategies, the AD8542ARZ can be leveraged to its full potential, resulting in high-accuracy, stable, and reliable amplifier circuits for a wide range of demanding applications. Whether you're designing precision measurement systems, sensor signal conditioning circuits, or low-power audio amplifiers, the AD8542ARZ is a versatile and reliable solution that can help you meet the highest standards of performance.
