Understanding the TMS320F28069PZT DSP Reset Mechanism and Common Issues

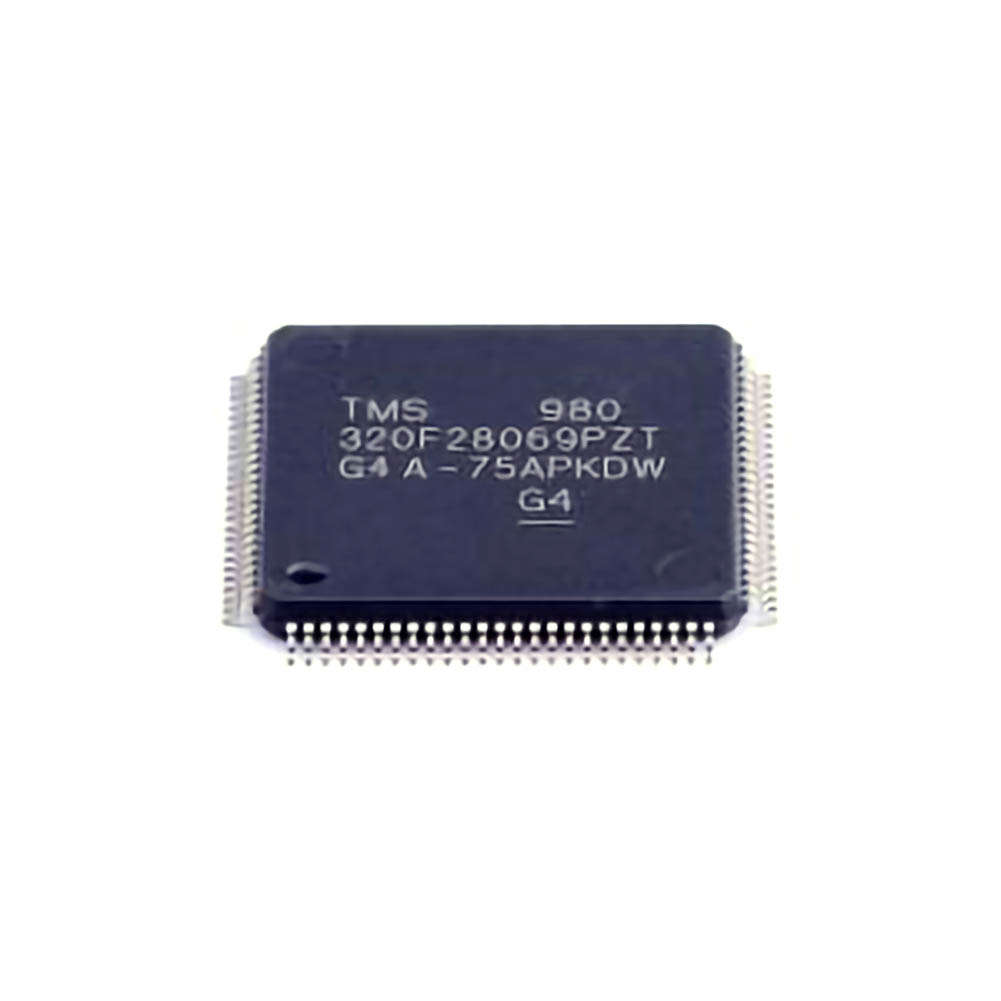

The TMS320F28069PZT is a Power ful Digital Signal Processor (DSP) from Texas Instruments, known for its high performance in real-time processing applications. It’s widely used in embedded systems that demand precision, speed, and reliability, such as motor control, industrial automation, and power electronics. However, like all complex electronic systems, it’s not immune to reset-related issues that can lead to system instability or even total failure if not addressed effectively.

The Role of Reset in DSP Systems

In any embedded system, the reset mechanism is crucial. It ensures that the processor starts from a known state and initializes the necessary components for correct operation. The TMS320F28069PZT employs several types of resets, including:

Power-On Reset (POR): Triggered when the system is powered up, this ensures the processor starts with a predictable configuration.

External Reset: Caused by an external signal, typically from a reset button or a supervisory circuit.

Watchdog Reset: Triggered if the watchdog timer detects that the system has become unresponsive or is stuck in an infinite loop.

Software Reset: Initiated by software commands to reset specific subsystems or the entire processor.

These resets help in bringing the DSP back to a stable state, but they can also introduce problems if not properly handled, especially in systems requiring high availability and uptime.

Common Causes of Reset Issues

Despite the well-engineered reset features, several factors can cause the TMS320F28069PZT to experience unwanted resets or fail to reset correctly. Here are some of the most common causes:

Power Supply Instability: The power supply is one of the most frequent culprits behind reset problems. If the supply voltage fluctuates beyond acceptable limits, the processor may either reset unexpectedly or fail to complete a reset sequence.

Incorrect Reset Timing : The timing of resets is critical for proper system operation. Too long or too short reset durations can cause the system to either miss necessary initialization steps or reboot too frequently.

Watchdog Timer Misconfiguration: The watchdog timer serves to reset the processor if it detects the system is no longer responsive. Misconfiguration of the timer or failure to properly service it can result in constant resets or failure to reset at all.

Faulty External Reset Circuit: The TMS320F28069PZT relies on external components like reset buttons and supervisory circuits to manage resets. Any failure in these components, such as noise or improper voltage levels, can cause erratic resets.

Software Bugs: In some cases, the reset issue is software-induced. This could be a bug that prevents the DSP from properly exiting from a reset condition or improperly configuring the reset system.

Impact of Reset Issues

The impact of reset issues on the TMS320F28069PZT can be significant. In industrial or automotive applications, where the DSP controls critical operations, any unexpected reset could lead to system downtime, equipment damage, or even safety risks. Moreover, for embedded systems that require continuous operation, a failure to manage resets properly can cause data corruption, inconsistent system states, or performance degradation.

As reset issues can stem from various sources, it’s essential to methodically diagnose and address them to ensure the DSP performs reliably.

Troubleshooting and Solutions for TMS320F28069PZT Reset Issues

Once reset issues are identified, the next step is to systematically troubleshoot and apply effective fixes. This section outlines common troubleshooting steps and solutions to ensure a stable reset mechanism for the TMS320F28069PZT DSP.

Step 1: Verify the Power Supply Integrity

A stable and clean power supply is essential for the proper operation of any embedded system, including the TMS320F28069PZT. Power supply fluctuations are one of the most common causes of reset problems. Engineers should verify the following:

Voltage Range: Ensure the supply voltage is within the specified range for the TMS320F28069PZT. For this processor, the typical voltage range is 3.0V to 3.6V. Voltage outside this range can lead to instability and resets.

Power Supply Decoupling: Proper decoupling Capacitors close to the processor can filter out noise and transients that might cause erratic resets. Capacitors of various values (e.g., 0.1µF and 10µF) should be placed near the power pins of the DSP.

Ripple and Noise: Measure the power supply’s ripple and noise using an oscilloscope. Excessive ripple or noise can induce unpredictable resets. Power supplies with poor filtering can contribute to this problem, so consider adding additional filtering components if necessary.

Step 2: Check Reset Circuit Timing

The timing of reset signals is crucial for ensuring the processor initializes correctly. If the reset signal is too short, the system may not fully initialize, leading to malfunction. Conversely, if the reset duration is too long, it could lead to unnecessary reboots.

Reset Pulse Duration: The TMS320F28069PZT has specific requirements for reset pulse width. According to the datasheet, the reset pulse must be at least 50µs to ensure proper startup. Engineers should check the duration of the reset pulse generated by external components like the reset button or supervisory IC.

Reset Timing Control: Use an oscilloscope to capture the reset signal’s waveform. Ensure that the reset signal transitions cleanly and is within the recommended timing window.

Step 3: Examine the Watchdog Timer Configuration

The watchdog timer is another critical component in preventing system lockups, but improper configuration can also trigger unwanted resets.

Watchdog Timeout Period: Verify that the watchdog timer is configured with an appropriate timeout value. If the value is too short, the processor may reset unnecessarily. If it’s too long, the system may not reset quickly enough in case of an error.

Watchdog Service: Ensure that the watchdog timer is being properly serviced in the main program loop. If the watchdog is not periodically reset, it will time out and trigger a system reset. Adding watchdog servicing code in the main control loop is essential to prevent unintentional resets.

Step 4: Analyze the External Reset Circuit

Many DSP systems rely on external reset circuits to initiate a reset. Issues such as poor layout, incorrect component values, or faulty external components can cause irregular resets.

Reset ICs: If using a reset supervisor IC, check its functionality and ensure it is designed for the TMS320F28069PZT’s voltage levels. Common reset supervisor ICs like the Texas Instruments TPS342 can be used to manage resets, but incorrect configuration or component failure can cause resets to occur prematurely or not at all.

Noise and Interference: External reset circuits can also be affected by environmental noise. Shielding reset signals from noisy components and using proper grounding techniques can mitigate the risk of unexpected resets.

Step 5: Debugging Software-Related Reset Issues

Software bugs can sometimes cause DSP reset issues, especially if the reset mechanism is controlled via software. A few steps can help debug and resolve software-related reset problems:

Check Reset Handlers: Review the interrupt and reset vector table in the code. Ensure the software correctly handles reset events and initializes all necessary peripherals and registers after a reset.

Monitor for Infinite Loops or Deadlocks: Watch for situations where the DSP enters an infinite loop or deadlock, causing the watchdog timer to trigger a reset. Using proper error-handling and watchdog servicing code can help prevent this.

Use Debugging Tools: Leverage debugging tools like JTAG or the Texas Instruments Code Composer Studio to step through the reset sequence and identify any software errors.

Conclusion

Reset issues in the TMS320F28069PZT DSP, though common, can usually be traced to a few root causes, including power supply instability, incorrect reset timing, watchdog misconfigurations, faulty external reset circuits, or software bugs. By following a methodical approach to troubleshoot and resolve these issues, engineers can ensure that the DSP operates reliably, maintaining system stability and preventing costly downtime. Effective diagnosis and correction of reset issues will result in smoother operation, enhanced reliability, and more robust embedded systems.

By addressing these reset issues with the right techniques, developers can extend the life of their embedded systems and enhance the performance of their applications, whether in industrial, automotive, or consumer electronics domains.
