Understanding the FM25CL64B-G TR and its Common Issues

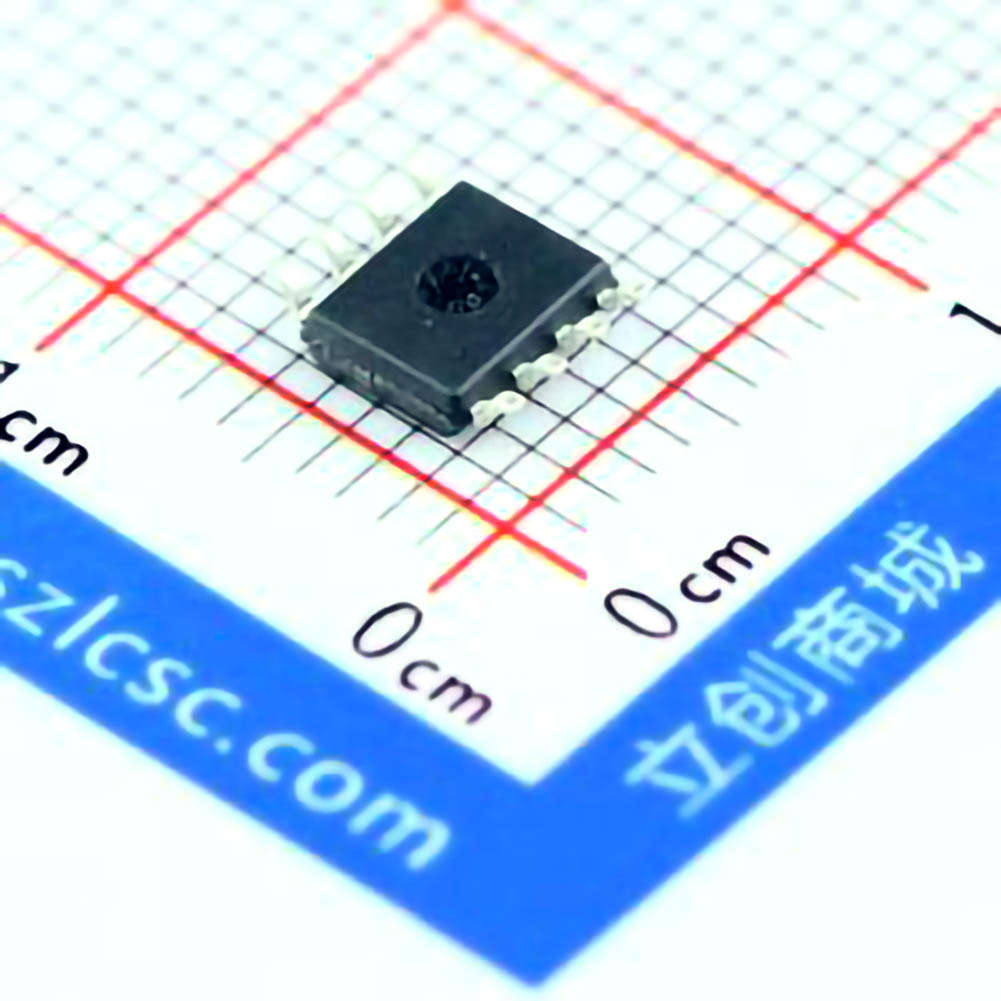

The CYPRESS  FM25CL64B-GTR is part of the FM25 family of ferroelectric random Access Memory (FRAM) devices from Fujitsu. These devices are widely recognized for their non-volatile memory capabilities, which allow them to retain data even when the Power supply is cut off. The FM25CL64B-GTR, in particular, is a 64-Mbit (8MB) memory device that combines the speed and endurance of SRAM with the non-volatility of EEPROM or flash memory. While it offers many advantages such as fast write speeds, low power consumption, and high data retention, users may face several challenges during operation.

In this first part of the article, we will outline some common issues users may encounter when working with the FM25CL64B-GTR and provide insights into why these problems occur.

1. Power Supply Issues

Problem: One of the most frequent issues encountered with the FM25CL64B-GTR is power-related problems. If the device is not receiving sufficient voltage or the voltage supply is unstable, it may fail to function correctly. Power supply issues can also lead to data corruption or loss, especially if power is suddenly lost during a write operation.

Solution: The FM25CL64B-GTR operates within a voltage range of 2.7V to 3.6V. Therefore, it is important to ensure that the voltage supplied to the device is stable and falls within this range. Using a regulated power supply is recommended to avoid voltage fluctuations. Additionally, incorporating a power-fail detection circuit can help protect the memory in case of sudden power loss.

2. Incorrect Data Write or Read Operations

Problem: Another common issue involves incorrect data writing or reading operations. This can happen due to improper clocking or Timing issues during the Communication between the FM25CL64B-GTR and the host system. Timing mismatches or delays in the SPI (Serial Peripheral interface ) communication protocol may lead to data corruption.

Solution: To solve this problem, it is crucial to ensure that the clock signal and timing parameters (such as the Chip Select, Read/Write Enable, and SPI clock frequency) are configured correctly according to the FM25CL64B-GTR datasheet. Additionally, you can use an oscilloscope to monitor the clock and data signals in real-time to identify any irregularities in the communication.

3. Write Endurance Limits

Problem: The FM25CL64B-GTR, like all FRAM devices, has a finite number of write operations it can endure. While FRAM has a much higher endurance compared to EEPROM and flash memory, excessive writes beyond the device’s rated endurance can lead to eventual wear and failure of the memory.

Solution: The FM25CL64B-GTR is rated for 10^13 read/write cycles, far exceeding the durability of flash memory. However, it is still important to monitor the write cycles and avoid unnecessary write operations. If frequent writes are necessary, ensure that wear-leveling algorithms are used to evenly distribute the writes across different memory areas. This will help extend the device's lifespan.

4. Faulty Initialization

Problem: Faulty initialization of the FM25CL64B-GTR can result in improper functionality, leading to system crashes or communication errors. This typically occurs when the device is not properly reset or the initialization sequence is not followed correctly in the firmware.

Solution: Always ensure that the FM25CL64B-GTR is correctly initialized before any operations are performed. The initialization sequence should follow the steps outlined in the datasheet. If the device is powered down, a full reset may be required to bring the device back to a known state.

5. External Interference

Problem: Electromagnetic interference ( EMI ) or static discharge can affect the operation of the FM25CL64B-GTR, especially when it is used in environments with high electrical noise or unstable conditions.

Solution: To mitigate the impact of EMI, ensure that the FM25CL64B-GTR is properly shielded within the system. Use grounding techniques and filtering capacitor s to suppress noise. Additionally, ensure that the device’s pins are not exposed to excessive static discharge by handling the device in a static-free environment.

Advanced Troubleshooting and Solutions for FM25CL64B-GTR

In this second part of the article, we will delve deeper into more advanced troubleshooting steps and solutions to resolve persistent or complex issues with the FM25CL64B-GTR.

1. Data Corruption During Writes

Problem: Data corruption is a critical issue in memory devices, especially when data is written but cannot be correctly read afterward. This often occurs due to improper power-down sequences, inadequate write protection, or system malfunctions during a write operation.

Solution: The FM25CL64B-GTR comes with built-in write protection to prevent inadvertent data corruption. However, if the device is not correctly powered during a write operation or if the write-enable pin is not properly configured, it could lead to corrupted data. To avoid such issues:

Ensure that the write enable pin (WE) is correctly asserted during write operations.

Always power down the device in a controlled manner, ensuring that all data writes are completed before the power is shut off.

Implement write-verification routines to double-check data integrity after each write operation.

2. SPI Communication Problems

Problem: SPI communication between the FM25CL64B-GTR and the microcontroller or host system is crucial for the memory device to function correctly. However, communication errors can arise if the SPI protocol is not correctly implemented or the configuration settings are incorrect.

Solution: Troubleshooting SPI communication problems often requires careful checking of the following parameters:

SPI clock polarity (CPOL) and phase (CPHA): These settings must match between the FM25CL64B-GTR and the microcontroller. The datasheet provides the exact requirements for the SPI settings.

Data transfer speed: Ensure that the SPI clock frequency is within the supported range for the FM25CL64B-GTR. If the frequency is too high, the device may not be able to properly communicate with the host system.

Timing parameters: Ensure that the setup and hold times for SPI signals are met, as improper timing can lead to read/write failures.

3. Memory Access Conflicts

Problem: In systems where multiple devices share the same memory bus or interface, memory access conflicts can occur, especially if multiple devices try to access the FM25CL64B-GTR simultaneously. This can lead to data loss or unreliable operation.

Solution: To avoid memory access conflicts:

Use proper bus arbitration mechanisms to ensure that only one device accesses the memory at a time.

Implement a lock mechanism in software to prevent other devices from accessing the FRAM while it is being written to or read from.

Ensure that the chip select (CS) pin is correctly asserted and deasserted when switching between different devices on the same bus.

4. Improper Memory Mapping

Problem: When using the FM25CL64B-GTR in systems with complex memory mapping, improper address assignments can cause the device to access incorrect regions or data. This is particularly true in systems where multiple memory module s are present.

Solution: Ensure that the memory addressing for the FM25CL64B-GTR is correctly configured in the system's memory map. If there are multiple FRAM devices or memory regions, ensure that each one is uniquely addressed. The address map should be defined clearly in the firmware, with appropriate checks to avoid overlapping addresses.

5. Thermal Issues

Problem: Like any electronic component, the FM25CL64B-GTR can experience thermal issues, especially if the system operates in high-temperature environments. Excessive heat can cause the device to malfunction or even result in permanent damage.

Solution: To prevent thermal problems:

Monitor temperature: Use temperature sensors or thermal cameras to ensure that the device operates within its safe temperature range (typically between -40°C to +85°C).

Improve airflow: Ensure that there is adequate ventilation around the device to allow for proper heat dissipation.

Thermal management: Consider using heat sinks or other cooling methods if the FM25CL64B-GTR is used in high-performance or high-temperature environments.

Conclusion

The FM25CL64B-GTR is an excellent choice for many applications requiring reliable, non-volatile memory. However, like any complex electronic component, it is essential to be aware of potential issues that can arise during its operation. By following the troubleshooting and solution strategies outlined in this article, you can ensure the smooth operation of your FM25CL64B-GTR and optimize its performance. From power supply stability to addressing SPI communication errors and handling thermal management, these solutions will help you address common and advanced issues with confidence.
