This article provides an in-depth guide on troubleshooting common issues encountered with the IRFB3607PBF Power MOSFET. Offering valuable insights and practical solutions, it aims to help engineers, technicians, and hobbyists effectively diagnose and resolve problems related to this essential component.

I RF B3607PBF troubleshooting, IRFB3607PBF MOSFET issues, IRFB3607PBF failure, IRFB3607PBF solutions, power MOSFET troubleshooting, MOSFET repair guide

Introduction to the IRFB3607PBF and Common Issues

What is the IRFB3607PBF?

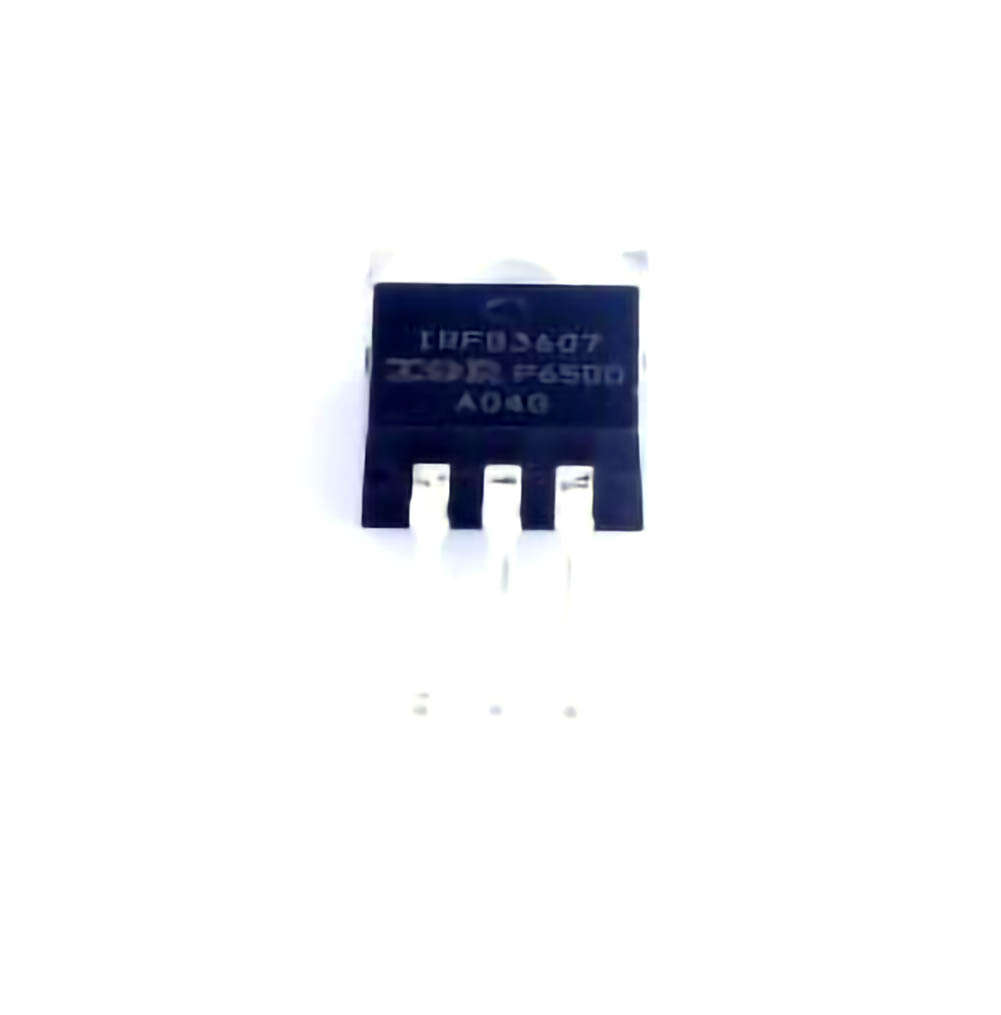

The Infineon IRFB3607PBF is a highly regarded power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) widely used in various electronic applications, including power supplies, motor drivers, and audio amplifiers. It is renowned for its high current handling capability, low Rds(on) (drain-to-source resistance), and fast switching characteristics, making it an ideal choice for high-efficiency power circuits.

The IRFB3607PBF is an N-channel MOSFET, designed to handle high voltages and currents while ensuring minimal energy loss during operation. This makes it an essential component in energy-sensitive and performance-critical applications.

Despite its efficiency and reliability, users may occasionally face issues with the IRFB3607PBF in real-world applications. These issues can arise from various factors, such as incorrect usage, improper circuit design, or external environmental conditions. In this article, we will address the most common troubleshooting steps for resolving IRFB3607PBF-related problems.

Common Issues with IRFB3607PBF MOSFETs

Overheating and Thermal Runaway

Overheating is one of the most common problems encountered with power MOSFETs, and the IRFB3607PBF is no exception. The MOSFET may overheat due to excessive current, insufficient heat dissipation, or poor Thermal Management . If the MOSFET’s junction temperature exceeds the maximum rated value, thermal runaway may occur, leading to permanent damage.

Symptoms:

The MOSFET becomes excessively hot to the touch during operation.

The circuit may stop functioning or exhibit reduced performance due to thermal shutdown.

Burnt smell or visible signs of thermal damage, such as discoloration or charring on the MOSFET.

Gate Drive Issues

The IRFB3607PBF operates as a switching device, meaning its gate must be driven properly to achieve the desired switching performance. Incorrect gate drive voltage or insufficient drive strength can lead to poor switching behavior, such as slow turn-on or turn-off, resulting in increased power losses and even failure to turn on or off properly.

Symptoms:

The MOSFET fails to switch fully on or off, leading to increased heat generation.

The MOSFET may stay in a partially conducting state, which can cause inefficient operation.

Irregular voltage spikes or ringing at the drain terminal during switching.

Circuit Design Errors

Inadequate design around the IRFB3607PBF can also lead to issues. For example, if the MOSFET is not properly matched to the load or the surrounding components, it can fail to operate within its intended parameters. Incorrect selection of input and output capacitance, as well as poor PCB layout, can result in signal integrity issues and poor MOSFET performance.

Symptoms:

Unstable or noisy output signals.

Circuit malfunctioning under load conditions.

Unexpected failures during high-current operation.

Short Circuit Protection Failure

Power MOSFETs like the IRFB3607PBF typically feature internal protection against overcurrent and short circuits. However, these protections may not always function correctly if the external circuit components fail or if the MOSFET is exposed to conditions outside its safe operating limits.

Symptoms:

No output despite the presence of input power.

Damage to the MOSFET, such as blown Fuses or burnt components in the surrounding circuitry.

Physical Damage

The IRFB3607PBF is a robust component, but mechanical or electrical stresses can still cause physical damage. This might occur due to excessive soldering heat, static discharge, or mishandling during installation.

Symptoms:

Cracks or other visible damage to the MOSFET package.

Poor contact in the MOSFET’s leads or pins, leading to intermittent or unreliable operation.

Troubleshooting and Solutions for the IRFB3607PBF

Troubleshooting Overheating and Thermal Runaway

Check the MOSFET’s Power Dissipation

The IRFB3607PBF has a low Rds(on), which reduces conduction losses, but power dissipation can still occur, particularly under high current loads. Begin by verifying the power dissipation using the formula:

[

P{dissipation} = I{D}^2 \times R_{DS(on)}

]

Where:

(I_D) is the drain current.

(R_{DS(on)}) is the MOSFET’s on-state resistance (typically provided in the datasheet).

If the dissipation exceeds the rated limits of the MOSFET, consider improving heat sinking or adding additional cooling mechanisms, such as fans or heat sinks, to the circuit.

Improve Thermal Management

Ensure that the MOSFET is mounted with adequate heat sinking. If the IRFB3607PBF is used in a power supply or motor driver application, installing a heat sink with sufficient thermal conductivity can drastically improve heat dissipation. Additionally, ensure that the MOSFET is placed in a location with good airflow to avoid hot spots.

Monitor Ambient Temperature

Keep the operating environment in mind. If the ambient temperature exceeds the MOSFET’s rated limits, the component is more likely to overheat. Make sure to implement environmental temperature monitoring and consider choosing a MOSFET with a higher power rating if operating in high-temperature conditions.

Fixing Gate Drive Issues

Verify Gate Drive Voltage

Check the gate drive voltage against the MOSFET’s threshold voltage (Vgs(th)) as specified in the datasheet. The IRFB3607PBF requires a gate voltage typically between 10V to 15V for full switching. If the gate drive is insufficient, consider using a dedicated gate driver IC to provide proper voltage levels to the MOSFET’s gate.

Use a Proper Gate Resistor

Adding a gate resistor can help control the switching speed, reducing switching losses and avoiding ringing or voltage spikes during transitions. Ensure that the gate resistor value is chosen carefully based on the MOSFET’s capacitance and the frequency of operation.

Check for Gate Charge Issues

The gate charge of the IRFB3607PBF is a critical parameter that influences switching performance. If the gate is not driven fast enough, it can lead to slow switching, causing the MOSFET to remain in a high-resistance state for longer periods. A higher-speed driver or optimized gate drive circuit can resolve this issue.

Circuit Design and Layout Considerations

Match the MOSFET to the Load

Ensure that the IRFB3607PBF is appropriately rated for the voltage and current requirements of your load. Using a MOSFET that is too small for the application can result in overheating and failure, while one that is oversized may unnecessarily increase cost and power dissipation.

Optimize PCB Layout

Proper PCB layout is essential for MOSFETs to operate efficiently. Ensure that the layout minimizes parasitic inductance and resistance in the current path, especially between the MOSFET and the load. Keep the traces short, wide, and thick to reduce losses and prevent excessive voltage spikes.

Decouple Power Supply Properly

Add appropriate decoupling capacitor s close to the MOSFET to minimize voltage fluctuations during switching. This helps ensure stable operation, especially when switching high currents.

Protecting the IRFB3607PBF from Short Circuits

Implement Overcurrent Protection Circuits

Overcurrent protection can be achieved by integrating a current sensing mechanism into the circuit. By monitoring the drain current and limiting it using an external control circuit, you can prevent damage to the MOSFET in case of short circuits.

Use External Fuses or Circuit Breakers

In high-power applications, installing fuses or circuit breakers rated appropriately for the application can provide an additional layer of protection. This will help protect the MOSFET and other critical components from sudden overcurrent conditions.

Addressing Physical Damage

Handle Components Carefully

Always handle the IRFB3607PBF with care to avoid mechanical stress. Use proper ESD (Electrostatic Discharge) protection when handling the MOSFET to avoid damaging its internal structure.

Check for Soldering Quality

Poor soldering techniques can lead to poor contact, intermittent issues, or even physical damage to the MOSFET pins. Ensure that the soldering process is done correctly, and use a magnifying glass to inspect the joints for cold solder or bridges.

In conclusion, while the IRFB3607PBF is a reliable and efficient MOSFET, users must pay attention to various factors such as thermal management, gate drive design, and overall circuit layout to ensure optimal performance. By carefully troubleshooting and addressing these common issues, you can extend the lifespan and functionality of this powerful component in your circuits.
